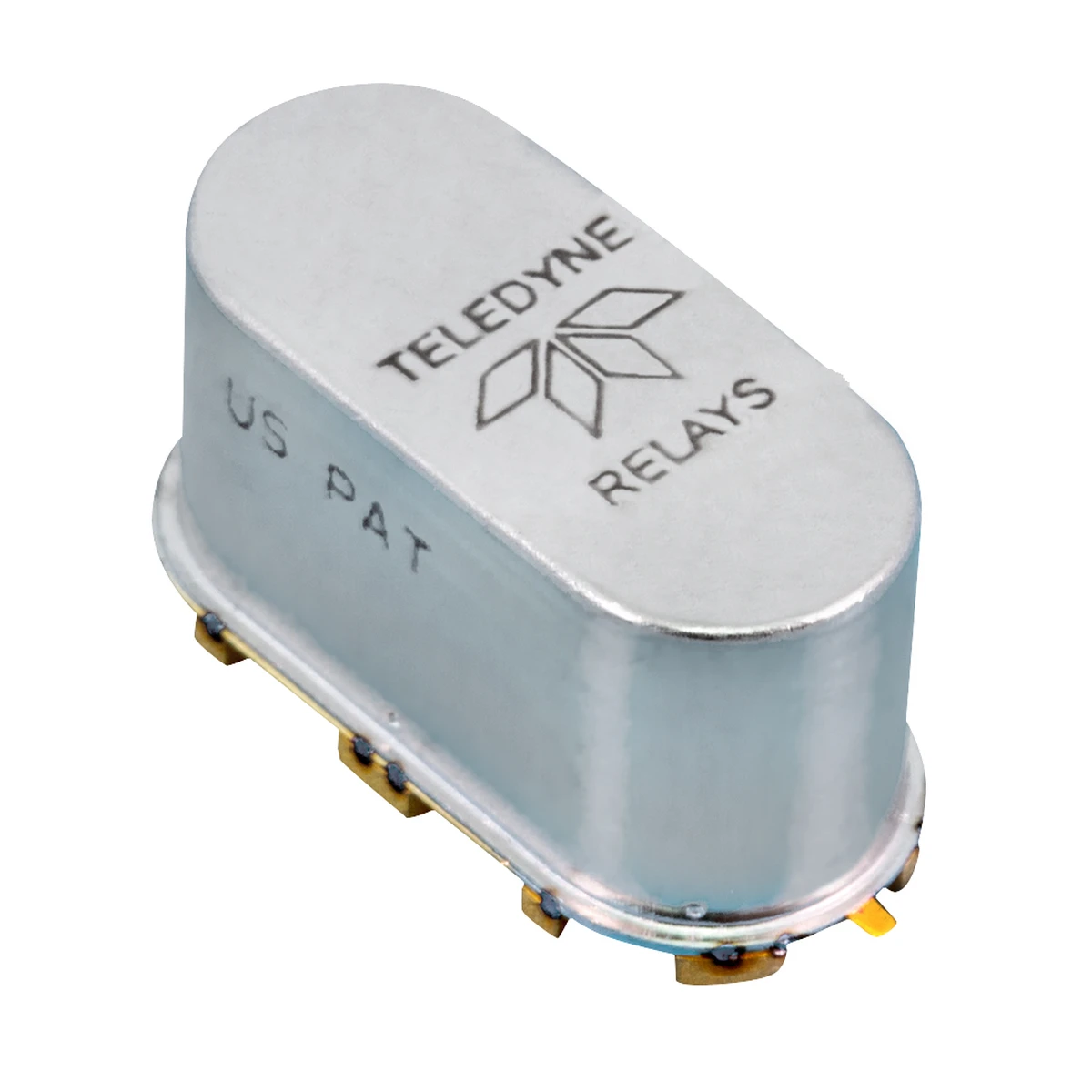

GLB36310012 The Teledyne GLB36310012 is a DPDT LoopBack relay featuring a 100 nF capacitance and a 12 VDC coil. It is hermetically sealed and designed for surface mounting.
Mfr Part #:

GLB36310012

Available from 1 distributors
Mfr Name: Teledyne
Teledyne
The Teledyne GLB36310012 is a DPDT LoopBack relay featuring a 100 nF capacitance and a 12 VDC coil. It is hermetically sealed and designed for surface mounting.
✓ Total Stock: 20 pcs
$ Price Range: $0.99

GLB36310012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 1611/1614 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GLB36310012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Coil Resistance
Coil Voltage
Dimensions
Lead Style
Mounting Type
Operating Temperature
View Similar Products (0)

GLB36310012 Description

Short technical summary and product information.

This Teledyne Series GLB363 relay, part number GLB36310012, is a DPDT LoopBack type relay. It features a capacitance of 100 nF and a coil with 12 VDC and 400 ohm resistance. The contacts are rated for 28 VDC at 1 A.



Designed for surface mounting, this relay has 10 pin stub leads and an oval, hermetically sealed case. Its dimensions are 19.56 mm in length, 8.51 mm in width, and 10.54 mm in height. The operating temperature range is from -55°C to +85°C.



This component is manufactured by Teledyne and is part of the GLB363 series. It is suitable for applications requiring reliable switching under various environmental conditions due to its hermetically sealed construction.

GLB36310012 Quick Information

Product Type: Relay
Series: GLB363
Canonical Name: Teledyne Series GLB363 DPDT LoopBack Relay
Subcategory: DPDT Relay

GLB36310012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GLB36310012 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

GLB36310012 Features

  • DPDT LoopBack relay configuration.
  • 100 nF capacitance rating.
  • 12 VDC coil with 400 ohm resistance.
  • Contacts rated for 1 A @ 28 VDC.
  • Hermetically sealed oval case for protection.

GLB36310012 Applications

  • Suitable for signal switching applications.
  • Used in environments requiring sealed components.
  • Ideal for compact surface-mount designs.
  • Reliable operation across wide temperatures.

GLB36310012 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-55°C to +85°C.

What is the coil voltage?

12 VDC.

What is the contact rating?

1 A at 28 VDC.

What is the capacitance value?

100 nF.

What is the mounting type?

Surface Mount.

What is the coil resistance?

400 ohm.

What are the dimensions?

19.56 x 8.51 x 10.54 mm.
