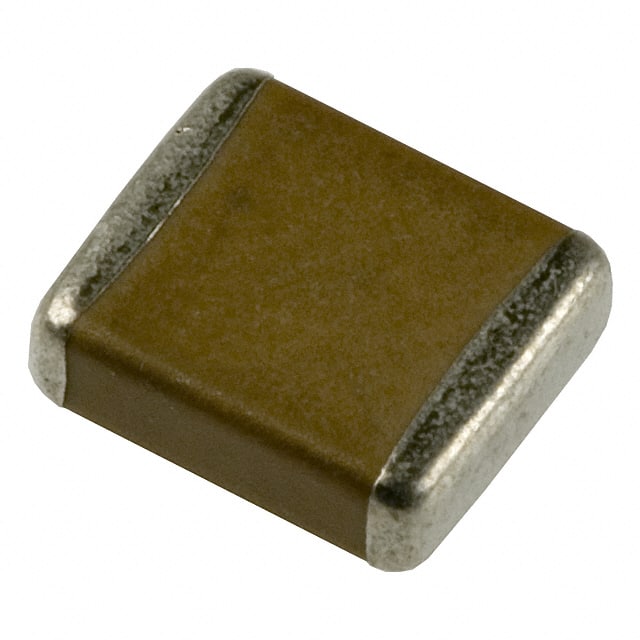

GA355DR7GF472KW01L Murata GA355DR7GF472KW01L is a safety certified multilayer ceramic capacitor with 4700pF capacitance, ±10% tolerance, rated for 250VAC operation. It features X7R temperature characteristics and is housed in a 2220 (5750 metric) surface mount package.
Mfr Part #:

GA355DR7GF472KW01L

Available from 8 distributors
Mfr Name: Murata
Murata
Murata GA355DR7GF472KW01L is a safety certified multilayer ceramic capacitor with 4700pF capacitance, ±10% tolerance, rated for 250VAC operation. It features X7R temperature characteristics and is housed in a 2220 (5750 metric) surface mount package.
✓ Total Stock: 29,145 pcs
$ Price Range: $0.37 - $1.19

GA355DR7GF472KW01L Available from 8 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

GA355DR7GF472KW01L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Impulse Voltage
Insulation Resistance
Length
Mounting Type
Operating Temperature
Packaging Type
Ratings
Reel Size
SVHC Present
Standard Package Quantity
Tape & Reel
Temperature Coefficient
Thickness (Max)
Tolerance
Voltage
Voltage Proof
Width
View Similar Products (0)

GA355DR7GF472KW01L Description

Short technical summary and product information.

The Murata GA355DR7GF472KW01L is a safety certified multilayer ceramic capacitor (MLCC) designed for general purpose applications requiring line-to-ground or line-to-line noise suppression. It complies with IEC 60384-14 Class X1/Y2 safety standards, making it suitable for AC power line applications.



Key electrical characteristics include a nominal capacitance of 4700 pF with a tolerance of ±10%, rated voltage of 250 VAC, and X7R dielectric with a temperature coefficient of ±15% over the operating range of -55°C to +125°C. The capacitor offers high insulation resistance of 6000 MΩ minimum and can withstand a dielectric strength of 2000 VAC.



The component is supplied in a 2220 (5750 metric) surface mount package measuring 5.70mm x 5.00mm x 2.00mm maximum. It is provided in embossed tape and reel packaging with 4000 pieces per reel, suitable for automated assembly.

GA355DR7GF472KW01L Quick Information

Product Type: Multilayer Ceramic Capacitor (MLCC)
Series: GA355
Canonical Name: Safety Certified MLCC Capacitor, 4700pF, ±10%, 250VAC, X7R, 2220 Package
Subcategory: Safety Capacitors

GA355DR7GF472KW01L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

GA355DR7GF472KW01L Estimated Pricing

Qty Low High
1+ $1.19 $1.19
10+ $0.60 $0.60
100+ $0.55 $0.55
500+ $0.47 $0.47
1,000+ $0.43 $0.43
2,000+ $0.39 $0.39
5,000+ $0.37 $0.37
10,000+ $0.37 $0.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

GA355DR7GF472KW01L Features

  • 4700pF capacitance with ±10% tolerance.
  • Rated for 250VAC operation.
  • X7R dielectric with ±15% temperature characteristics.
  • Safety certified to IEC 60384-14 X1/Y2.
  • Surface mount 2220 package for automated assembly.

GA355DR7GF472KW01L Applications

  • Line-to-line cancellation in AC power filters.
  • Line-to-ground decoupling in switch mode power supplies.
  • Safety barrier in mains connected equipment.
  • Noise suppression in industrial electronics.

GA355DR7GF472KW01L FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance value?

4700 pF.

What is the rated voltage?

250 VAC.

What is the temperature coefficient?

X7R.

What is the tolerance?

±10%.

What is the package type?

2220 (5750 Metric).

What safety certifications does this capacitor hold?

IEC 60384-14 Class X1/Y2.

What is the operating temperature range?

-55°C to +125°C.
