| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Illumination | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

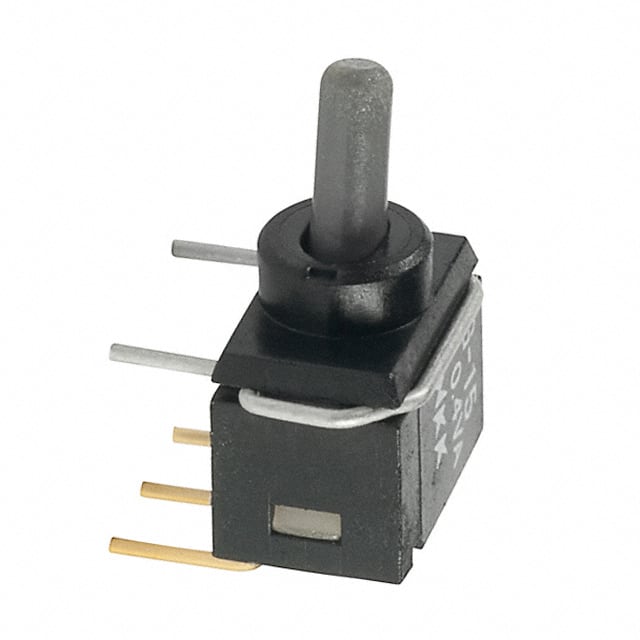

The NKK Switches G15AH is an ultra-miniature toggle switch designed for through-hole mounting with a right-angle termination style. This non-illuminated switch features a Single Pole Double Throw (SPDT) circuit and a standard round actuator with a 3.80mm length.
It is rated for 0.4VA (AC/DC) at 28V, making it suitable for various electrical applications. The switch is process-sealed, offering protection against environmental factors, and operates within a temperature range of -25°C to 85°C. The unthreaded bushing and PC pin termination style facilitate easy integration into circuit boards.
This toggle switch is identified by part number G15AH and is also available under the distributor part number G15AH-ND. Its robust construction and reliable performance make it a suitable choice for applications requiring a durable and compact switching solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The G15AH toggle switch has a current rating of 0.4VA (AC/DC).
The G15AH toggle switch is rated for 28V.
The G15AH toggle switch features an SPDT (Single Pole Double Throw) circuit.
The G15AH toggle switch is designed for through-hole mounting with a right-angle orientation.
The G15AH toggle switch operates within a temperature range of -25°C to 85°C.
No, the G15AH toggle switch is non-illuminated.
