| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

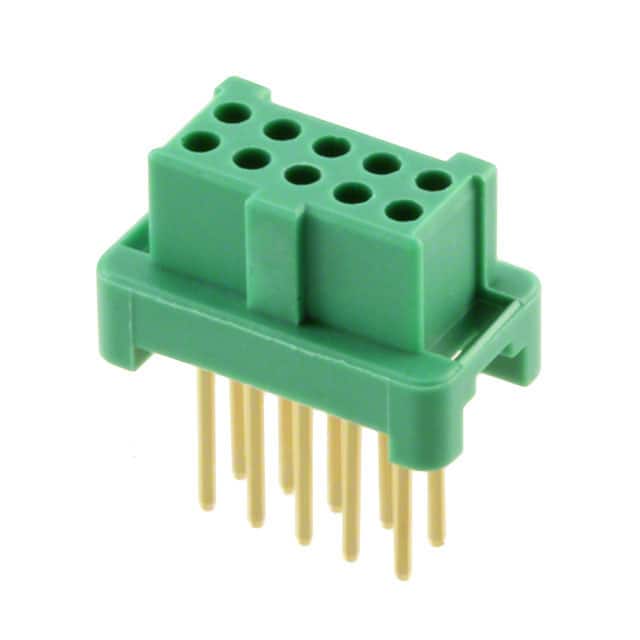

The Harwin G125-FV21005L0P is a 10-position (5+5) female receptacle connector from the Gecko G125 series. It features a 1.25mm pitch and 2 rows, with all positions loaded. The connector uses female socket contacts made of beryllium copper with gold finish (0.203µm thickness). The housing is green UL94 V-0 rated thermoplastic, with a latch holder fastening mechanism for secure mating with male plug connectors.
This through-hole connector has straight (vertical) orientation with 4.5mm solder tails. It is designed for board-to-board or cable-to-board applications. The connector includes pick-and-place and polarizing key features for automated assembly. It is rated for 2A current and operates from -65°C to 150°C.
The Gecko Latch series provides reliable interconnection with easy-to-release locking latches. The connector is packaged in tape strips for pick-and-place assembly. RoHS and REACH compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $13.00 | $13.00 |
| 10+ | $11.05 | $11.05 |
| 50+ | $10.96 | $10.96 |
| 100+ | $9.39 | $9.39 |
| 500+ | $8.38 | $8.38 |
| 1,000+ | $7.98 | $7.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows, all loaded.
1.25mm (0.049").
2A.
Through hole.
Gold with 0.203µm thickness.
-65°C to 150°C.
Latch holder.
