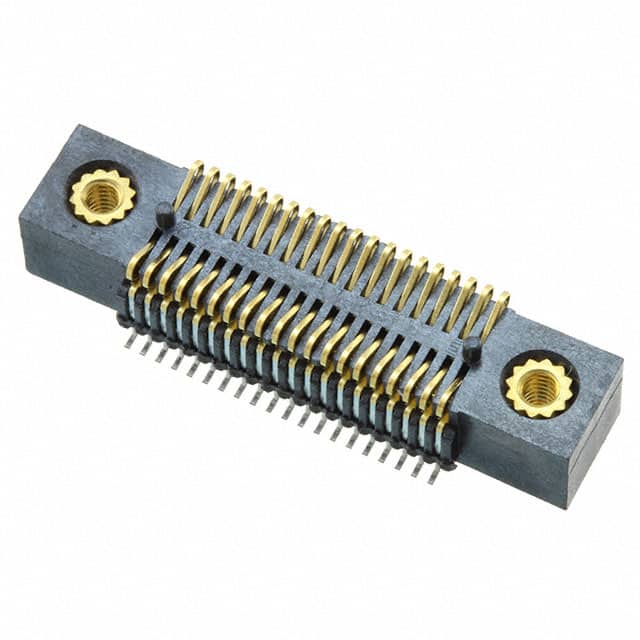

FSI-120-06-L-D-E-AD The FSI-120-06-L-D-E-AD is a 40-position stacking compression connector from Samtec. It features a 1.00mm pitch, 2 rows, surface mount, and gold contact finish.
Mfr Part #:

FSI-120-06-L-D-E-AD

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The FSI-120-06-L-D-E-AD is a 40-position stacking compression connector from Samtec. It features a 1.00mm pitch, 2 rows, surface mount, and gold contact finish.
✓ Total Stock: 95 pcs
$ Price Range: $5.85 - $10.70

FSI-120-06-L-D-E-AD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
95 pcs
On Request
95 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FSI-120-06-L-D-E-AD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Halogen Free
Height Above Board
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

FSI-120-06-L-D-E-AD Description

Short technical summary and product information.

The FSI-120-06-L-D-E-AD is a 40-position stacking compression connector from Samtec's FSI series. It is designed for board-to-board stacking applications with a 1.00mm pitch and 2 rows. The connector uses surface mount technology and has a height above board of 6.00mm. Contacts are finished with gold plating of 0.25µm thickness for reliable electrical performance. Additional features include board guide, mating guide, and mounting flange to aid in alignment and secure attachment. The part is listed as RoHS3 compliant, MSL 1, and REACH unaffected per distributor data, though these compliance values are unverified. This connector is suitable for mezzanine connections in compact electronic assemblies where space is constrained.

FSI-120-06-L-D-E-AD Quick Information

Product Type: Mezzanine (Board-to-Board) Connector
Series: FSI
Canonical Name: FSI Series 40 Position 2 Row 1.00mm Pitch Stacking Compression Connector Surface Mount
Subcategory: Mezzanine Connector

FSI-120-06-L-D-E-AD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

FSI-120-06-L-D-E-AD Estimated Pricing

Qty Low High
1+ $10.70 $10.70
10+ $9.90 $9.90
25+ $9.35 $9.35
48+ $8.85 $8.85
112+ $7.81 $7.81
256+ $7.32 $7.32
512+ $6.49 $6.49
1,008+ $6.40 $6.40
2,000+ $5.85 $5.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

FSI-120-06-L-D-E-AD Features

  • 40 position stacking compression connector.
  • Surface mount with 1.00mm pitch.
  • Gold contact finish for reliability.
  • Includes board guide and mounting flange.
  • 6.00mm height above board.

FSI-120-06-L-D-E-AD Applications

  • Designed for board-to-board stacking applications.
  • Suitable for high-density mezzanine connections.
  • Used in compact electronic assemblies.

FSI-120-06-L-D-E-AD FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the FSI-120-06-L-D-E-AD have?

40 positions.

What is the pitch of this connector?

1.00mm.

What is the mounting type?

Surface Mount.

What is the height above board?

6.00mm.

What contact finish is used?

Gold with a thickness of 0.25µm.

What features does this connector include?

Board guide, mating guide, and mounting flange.

Is this connector RoHS compliant?

Distributor data indicates RoHS3 compliance, but this is unverified.
