FS820R08A6P2B

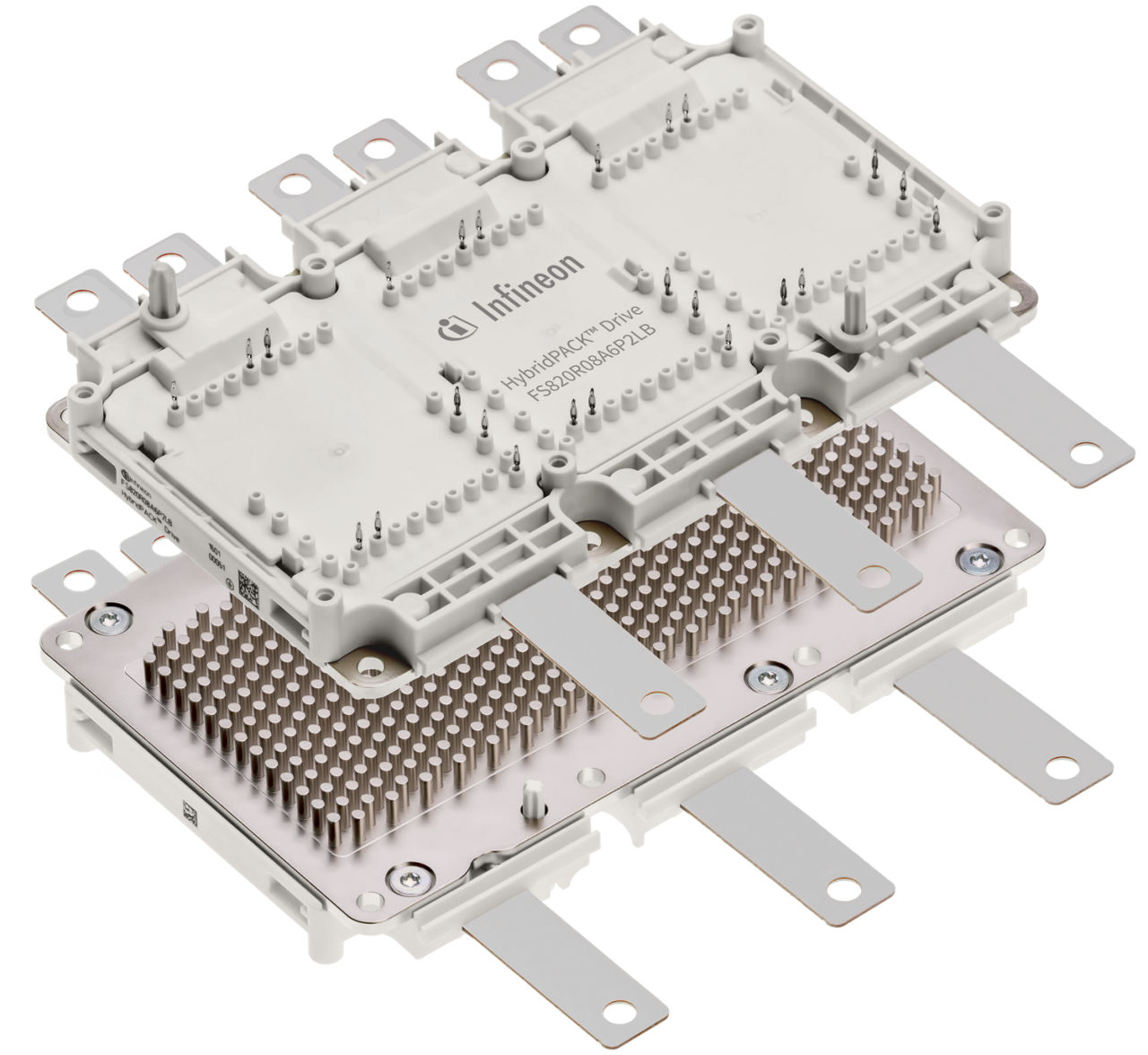

The Infineon FS820R08A6P2B is a compact HybridPACK™ Drive module featuring the EDT2 IGBT generation, optimized for hybrid and electric vehicles. This 750V/820A power module is designed for electric drivetrain applications, offering benchmark current density, short circuit ruggedness, and increased blocking voltage for reliable inverter operation.

The module implements an automotive Micro-Pattern Trench-Field-Stop cell design, providing excellent light load power losses to improve system efficiency. It is optimized for switching frequencies around 10 kHz. The design includes mechanical guiding elements for easy assembly and press-fit pins for signal terminals, reducing assembly time and increasing reliability.

Key electrical features include low VCEsat, low switching losses, low Qg and Crss, and a low inductive design. The module operates at Tvj op = 150°C, with short-time extended operation up to 175°C. Mechanical features include a direct-cooled PinFin baseplate for superior thermal characteristics, high creepage and clearance distances, and an integrated NTC temperature sensor.

Typical applications include hybrid electric vehicles (HEVs), motor drives, and commercial agriculture vehicles. The module's robust design and high power density make it suitable for demanding automotive environments.
