| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,786,000 pcs
|
3786000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |

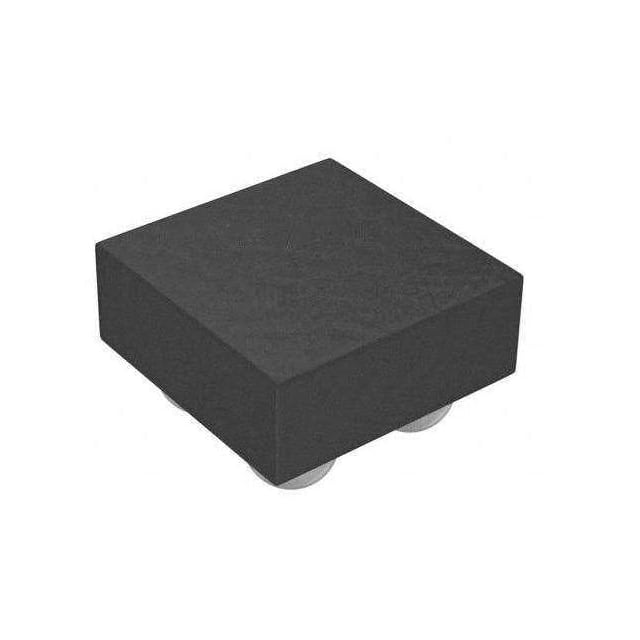

The FPF1204UCX-F013 from On Semiconductor is a single-pole, single-throw (SPST) load switch with slew rate control. This component is designed for power distribution applications, offering a P-channel output configuration.
Key electrical specifications include a maximum current handling of 2.2A and a typical on-resistance (Rds On) of 55mOhm. The switch operates with an On/Off interface and is suitable for high-side output configurations. It is designed for surface mounting.
The operating temperature range for this device is -40°C to 85°C. The package is a compact 4-WLCSP (Wafer Level Chip Scale Package), measuring 0.8x0.8mm, making it ideal for space-constrained designs.
This general-purpose load switch is part of On Semiconductor's power management IC portfolio.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FPF1204UCX-F013 has a current rating of 2.2A.
The typical on-resistance (Rds On) for the FPF1204UCX-F013 is 55mOhm.
The operating temperature range is -40°C to 85°C.
The FPF1204UCX-F013 is available in a 4-WLCSP, 4-UFBGA, WLCSP package.
This component is designed for surface mount.
