| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

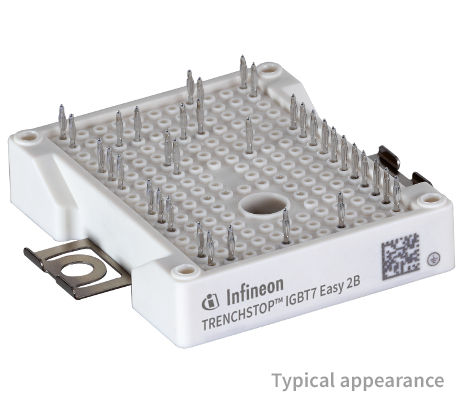

The Infineon FP25R12W2T7_B11 is an EasyPIM™ module designed with TRENCHSTOP™ IGBT7 technology and an emitter-controlled 7 diode. This module boasts a high Collector-Emitter Voltage (Vces) of 1200 V and a nominal Continuous Collector Current (Ic nom) of 25 A, with a peak Pulsed Collector Current (Icrm) of 50 A.
Key electrical features include the advanced TRENCHSTOP™ IGBT7 for efficient power handling and low V CE,sat. It supports overload operation up to 175°C, providing thermal robustness. The module is equipped with PressFIT contact technology for mechanical assembly and features a compact design with an Al2O3 substrate for low thermal resistance. An insulation voltage of 2.5 kV AC for 1 minute ensures electrical safety.
Potential applications for this IGBT module include air conditioning systems, auxiliary inverters, and motor drives. It is qualified for industrial applications according to relevant IEC standards, including IEC 60747, 60749, and 60068, ensuring reliability in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $103.07 | $103.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1200 V.
25 A.
50 A.
TRENCHSTOP IGBT7.
175°C during overload operation.
2.5 kV AC for 1 minute.
EasyPIM module with PressFIT mounting.
