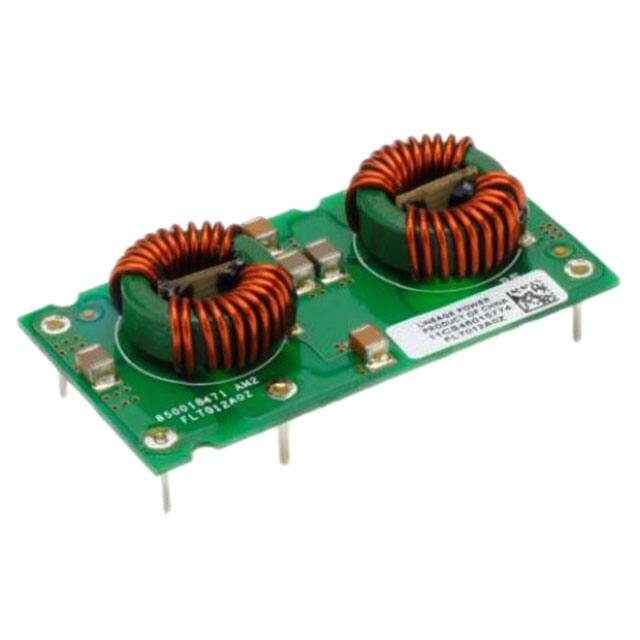

The ABB Power Electronics FLT012A0-SZ is an input filter module designed to reduce conducted differential and common-mode noise in power systems. It operates with a maximum input voltage of 75Vdc and can handle a maximum output current of 12A.
This filter module is optimized for use with DC/DC converter modules, enabling designers to meet EMI standards such as CISPR 22 (EN55022) and FCC Class B. It features common-mode and differential-mode filtering in a compact, low-profile open-frame design.
The module has a wide operating temperature range of -40°C to +85°C. It is available in both surface mount and through-hole versions, offering flexibility in PCB design and integration. The dimensions are 48.3 mm x 25.4 mm x 11.7 mm.
Applications include distributed power architectures, wireless networks, enterprise networks, and access and optical network equipment. The 'Z' versions are compliant with RoHS EU Directive 2011/65/EU and compatible with Pb-free or SnPb reflow environments.
The maximum input voltage is 75 Vdc.
The maximum output current is 12 A.
The operating ambient temperature range is -40°C to 85°C.
The dimensions are 48.3 mm x 25.4 mm x 11.7 mm.
The FLT012A0-SZ is available in both surface mount and through-hole versions.
Yes, the FLT012A0-SZ is RoHS3 compliant per EU Directive 2011/65/EU.
It is designed for use with DC-DC converters.
