| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Isolation Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Input Voltage | |
| Operating Temperature | |
| Package Height | |
| Package Length | |
| Package Width | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Voltage |

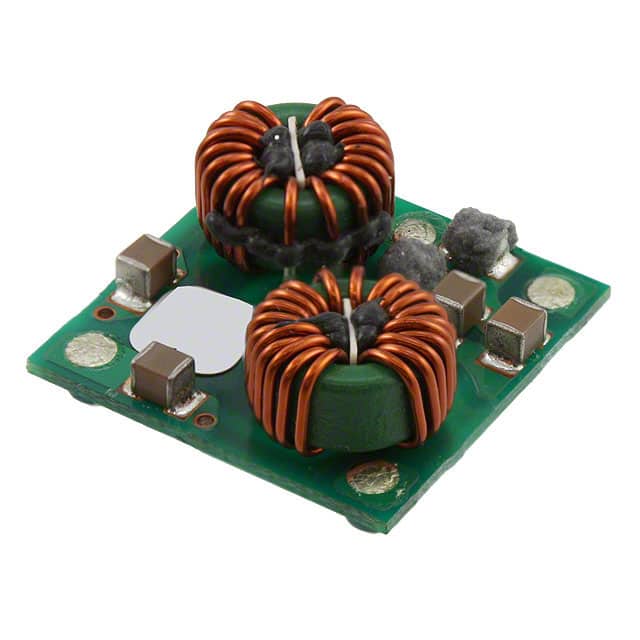

The FLT007A0-SRZ is a DC input filter module from ABB Power Electronics designed to reduce conducted differential and common-mode noise in power systems. It operates over an input voltage range up to 75V and supports output currents up to 7A. The module is optimized for use with DC/DC converter modules to help meet EMI standards including CISPR 22 (EN55032) and FCC Class B.
The filter module features a compact surface mount package measuring 25.4 mm x 25.4 mm x 12.2 mm. It is designed for an ambient temperature range of -40°C to +85°C and is compliant with RoHS Directive 2011/65/EU and REACH Directive (EC) No 1907/2006. The module provides both common-mode and differential-mode filtering in a cost-efficient open frame design.
Typical applications include distributed power architectures, intermediate bus voltage systems, telecommunications equipment, wireless base stations, enterprise networks, and industrial equipment. The module shares the same footprint as the FLTR75V5 module and is available in surface mount (-SR) and through-hole versions.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.15 | $21.15 |
| 10+ | $17.26 | $17.26 |
| 25+ | $15.92 | $15.92 |
| 50+ | $14.97 | $14.97 |
| 140+ | $13.67 | $13.67 |
| 280+ | $12.86 | $12.86 |
| 420+ | $12.41 | $12.41 |
| 700+ | $12.20 | $12.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input voltage is 75V DC.
The current rating is 7A.
The operating temperature range is -40°C to +85°C.
The package dimensions are 25.4 mm x 25.4 mm x 12.2 mm.
Yes, it is compliant with RoHS Directive 2011/65/EU.
It provides both common-mode and differential-mode filtering.
It is a surface mount device.
