| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style |

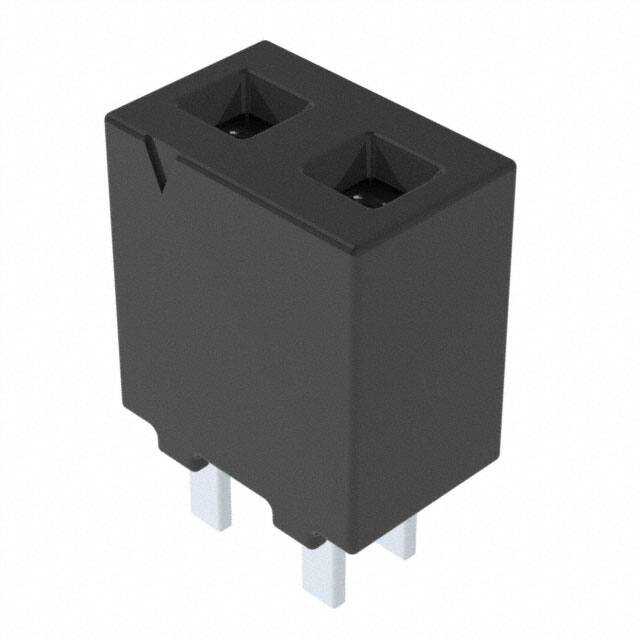

The Samtec FHP-02-01-T-S is a 2 position rectangular connector receptacle designed for board-to-board applications. It features a single row of female socket contacts with a 3.96mm (0.156") pitch, making it suitable for compact PCB layouts.
The connector uses through hole termination with solder contacts and a push-pull fastening mechanism. The insulation is black with a height of 8.89mm (0.350"). All positions are loaded, providing a reliable connection. The operating temperature range is -55°C to 105°C, allowing use in a variety of environments.
Contact finish is tin, offering good solderability and corrosion resistance. The contact length is 2.60mm (0.102"). This connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.09 | $2.09 |
| 50+ | $1.77 | $1.77 |
| 100+ | $1.51 | $1.51 |
| 500+ | $1.34 | $1.34 |
| 1,000+ | $1.01 | $1.01 |
| 2,000+ | $0.95 | $0.95 |
| 5,000+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FHP-02-01-T-S has 2 positions, all loaded.
The pitch is 3.96mm (0.156").
The mounting type is through hole.
The operating temperature range is -55°C to 105°C.
The contact finish is tin.
