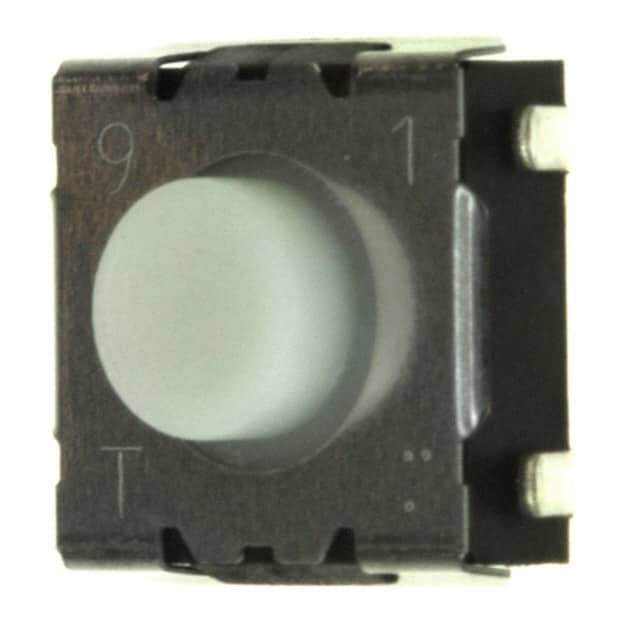

The Panasonic Electronic Components EVQ-QXP01W is a tactile switch designed for surface mount applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
This switch operates with a rating of 0.02A at 15VDC and has a contact resistance of 50 mΩ maximum. The insulation resistance is a minimum of 50 MΩ at 100 Vdc, with a dielectric strength of 250 Vac for 1 minute. Mechanical specifications include an operating force of 1.3 N ± 0.4 N and a travel of 0.25 mm ± 0.10 mm. The switch has an operating life of 100,000 cycles minimum.
Environmental conditions for operation range from -20 °C to +70 °C. The switch is designed for reflow soldering and has a height of 2.00mm off the PCB. Its outline dimensions are 6.20mm x 6.20mm, and it utilizes a J Lead termination style. The actuator type is standard and top actuated.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the EVQ-QXP01W is 15 Vdc.
The operating temperature range is -20 °C to +70 °C.
The EVQ-QXP01W requires Surface Mount.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
