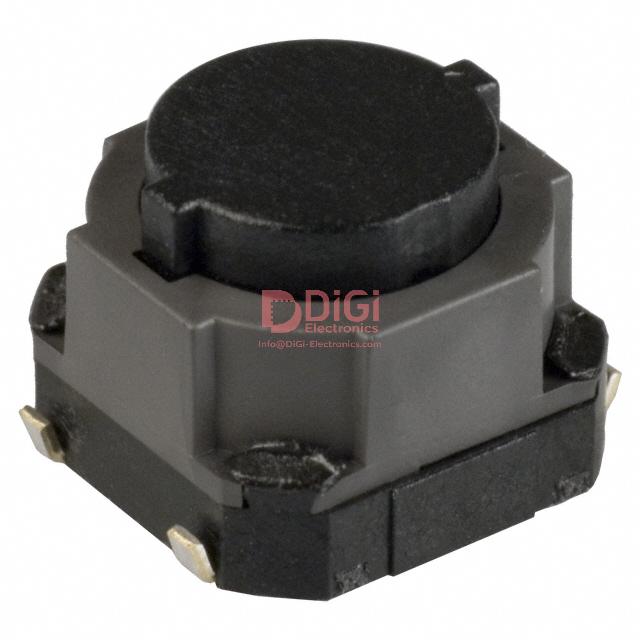

EVQ-Q1E06K The Panasonic Electronic Components EVQ-Q1E06K is a tactile switch with a SPST-NO circuit and a contact rating of 0.05A @ 12VDC. It features a surface mount termination style.
Mfr Part #:

EVQ-Q1E06K

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components EVQ-Q1E06K is a tactile switch with a SPST-NO circuit and a contact rating of 0.05A @ 12VDC. It features a surface mount termination style.
✓ Total Stock: 120 pcs
$ Price Range: $0.75

EVQ-Q1E06K Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EVQ-Q1E06K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Automotive Grade
Circuit
Contact Rating @ Voltage
Illumination
Industrial Grade
Ingress Protection
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Force
Operating Temperature
Operating Voltage
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

EVQ-Q1E06K Description

Short technical summary and product information.

This Panasonic Electronic Components EVQ-Q1E06K is a tactile switch designed for various electronic applications. It operates with a SPST-NO circuit configuration and has a contact rating of 0.05A at 12VDC.



The switch features a surface mount termination style and a J Lead for secure connection. Its actuator is top-actuated and has a height of 6.50mm off the PCB. The overall outline of the switch is 9.90mm x 8.00mm.



With an operating force of 500gf, this non-illuminated tactile switch is suitable for environments with temperatures ranging from -40°C to 85°C. It also offers dust proof ingress protection.

EVQ-Q1E06K Quick Information

Product Type: Tactile Switch
Series: EVQQ1
Canonical Name: Panasonic Electronic Components EVQ-Q1E06K Tactile Switch
Subcategory: Tactile Switch

EVQ-Q1E06K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EVQ-Q1E06K Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

EVQ-Q1E06K Features

  • SPST-NO tactile switch.
  • Rated for 0.05A at 12VDC.
  • Surface mount with J Lead.
  • Top actuated standard actuator.
  • Operates from -40°C to 85°C.

EVQ-Q1E06K Applications

  • Suitable for general purpose switching.
  • Used in compact electronic devices.
  • Ideal for user interface controls.
  • Component in control panels.

EVQ-Q1E06K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the EVQ-Q1E06K switch?

The operating voltage is 12VDC.

What is the contact rating of this switch?

The contact rating is 0.05A at 12VDC.

What mounting style does the EVQ-Q1E06K use?

It uses surface mount with J lead termination.

What is the actuator height off PCB?

The actuator height off PCB is 6.50mm.

What is the temperature operating range?

-40°C to 85°C.

Is the switch dust proof?

Yes, it is dust proof.

Is the EVQ-Q1E06K RoHS compliant?

Yes, it is RoHS3 compliant.
