| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
617 pcs
|
617 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length, Right Angle | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Illumination | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

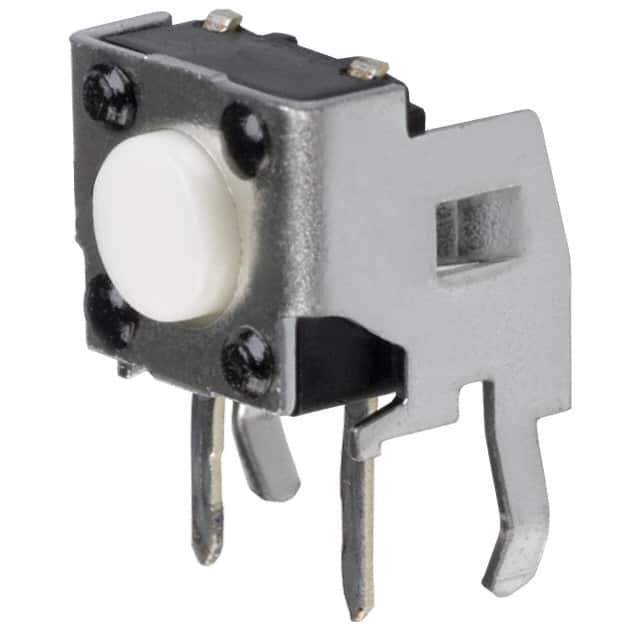

The Panasonic Electronic Components EVQ-PF203M is a tactile switch designed for various electronic applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
This switch operates at a contact rating of 0.02A and 15VDC. It requires an operating force of 160gf and has a travel distance of 0.25 mm ±0.10 mm. The switch is designed for Through Hole, Right Angle mounting and has a PC Pin termination style.
With an operating temperature range of -20°C to 70°C, the EVQ-PF203M is suitable for a wide range of environmental conditions. It boasts a mechanical endurance of 100,000 cycles minimum. The dimensions of the switch outline are 7.50mm x 7.10mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EVQ-PF203M tactile switch has a contact rating of 0.02A at 15VDC.
The operating force for the EVQ-PF203M switch is 160gf.
The operating temperature range for the EVQ-PF203M is -20°C to 70°C.
The EVQ-PF203M switch is designed for Through Hole, Right Angle mounting.
