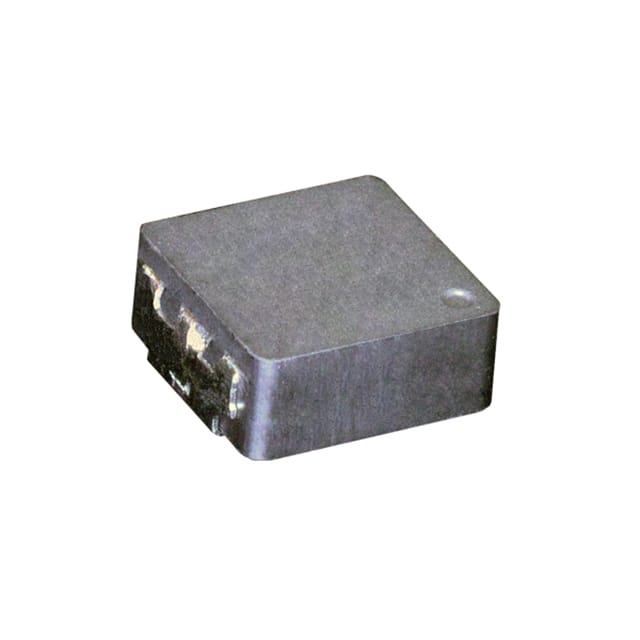

ETQ-P4M150KVK Panasonic ETQ-P4M150KVK is a shielded drum core wirewound fixed inductor with 15 µH inductance, 4.5 A current rating, and 60.5 mOhm maximum DCR.
Mfr Part #:

ETQ-P4M150KVK

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
Panasonic ETQ-P4M150KVK is a shielded drum core wirewound fixed inductor with 15 µH inductance, 4.5 A current rating, and 60.5 mOhm maximum DCR.
✓ Total Stock: 110 pcs
$ Price Range: $0.40 - $0.84

ETQ-P4M150KVK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
110 pcs
On Request
110 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ETQ-P4M150KVK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Industrial Grade
Lead Style
Length
Material
Mounting Type
Operating Temperature
Ratings
Shielding
Tape & Reel
Termination Style
Tolerance
Type
Width
View Similar Products (0)

ETQ-P4M150KVK Description

Short technical summary and product information.

The Panasonic ETQ-P4M150KVK is a fixed inductor designed for surface mount applications. It features a drum core wirewound construction with a metal composite core and is fully shielded to minimize electromagnetic interference.



This inductor offers an inductance of 15 µH with a tolerance of ±20%. It is rated for a continuous current of 4.5 A and has a saturation current of 7.7 A. The maximum DC resistance is 60.5 mOhm, contributing to efficient power handling.



The component is qualified to AEC-Q200, making it suitable for automotive applications. It operates over a wide temperature range from -55°C to 155°C. The package is a 2-SMD with J-Lead terminations, measuring 8.50 mm x 8.00 mm with a height of 4.00 mm.

ETQ-P4M150KVK Quick Information

Product Type: Fixed Inductor
Series: PCC-M0840M-LP
Canonical Name: Panasonic ETQ-P4M150KVK Fixed Inductor
Subcategory: Shielded Drum Core Inductor

ETQ-P4M150KVK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ETQ-P4M150KVK Estimated Pricing

Qty Low High
1+ $0.84 $0.84
10+ $0.69 $0.69
25+ $0.60 $0.60
100+ $0.57 $0.57
250+ $0.53 $0.53
500+ $0.48 $0.48
1,000+ $0.44 $0.44
2,000+ $0.41 $0.41
5,000+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

ETQ-P4M150KVK Features

  • Shielded drum core wirewound construction.
  • 15 µH inductance with ±20% tolerance.
  • Rated for 4.5 A continuous current.
  • AEC-Q200 qualified for automotive use.
  • Surface mount in 2-SMD J-Lead package.

ETQ-P4M150KVK Applications

  • Suitable for automotive power supply circuits.
  • Used in DC-DC converter filtering stages.
  • Ideal for noise suppression in compact designs.

ETQ-P4M150KVK FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the ETQ-P4M150KVK?

The inductance is 15 µH with a tolerance of ±20%.

What is the current rating of this inductor?

The current rating is 4.5 A, and the saturation current is 7.7 A.

What is the DC resistance of the ETQ-P4M150KVK?

The maximum DC resistance is 60.5 mOhm.

Is the ETQ-P4M150KVK shielded?

Yes, it is a shielded inductor.

What is the operating temperature range?

The operating temperature range is -55°C to 155°C.

Is this inductor qualified for automotive applications?

Yes, it is AEC-Q200 rated.

What is the package size of the ETQ-P4M150KVK?

The package is 2-SMD with J-Lead, measuring 8.50 mm x 8.00 mm with a height of 4.00 mm.
