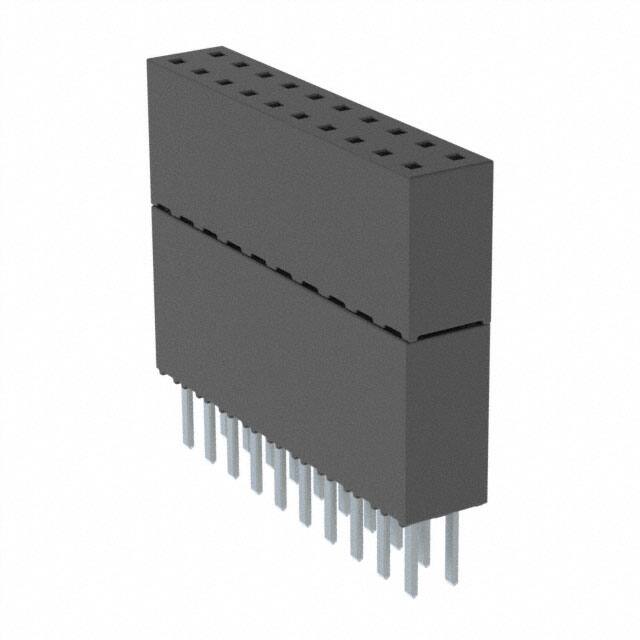

The ESW-110-44-S-D is a 20 position elevated socket connector from Samtec Inc., part of the ESW series. It features a 2.54mm pitch with 2 rows of contacts, and a through hole solder termination style. The connector is designed for board to board applications with a push-pull fastening system. The contact material is Phosphor Bronze with a Tin finish over 50µ" Nickel underplate. The insulation is black glass filled polyester rated UL94 V-0. Electrical ratings include 5.2A per contact (2 pins powered) and 515VAC when mated with TSW or ESQ headers. The operating temperature range is -55°C to +105°C for Tin contact finish. The insulation height is 18.67mm, making it suitable for elevated stacking applications. This connector mates with a variety of Samtec header series including TSW, MTSW, EW, and others. The insertion depth range is 3.68mm to 6.35mm. Note that this part is not lead-free solderable and requires lead wave soldering.
20 positions in 2 rows.
2.54mm.
5.2A per contact (2 pins powered).
515VAC (mated with TSW or ESQ).
Through hole solder.
-55°C to +105°C for Tin contact finish.
3.68mm to 6.35mm.
