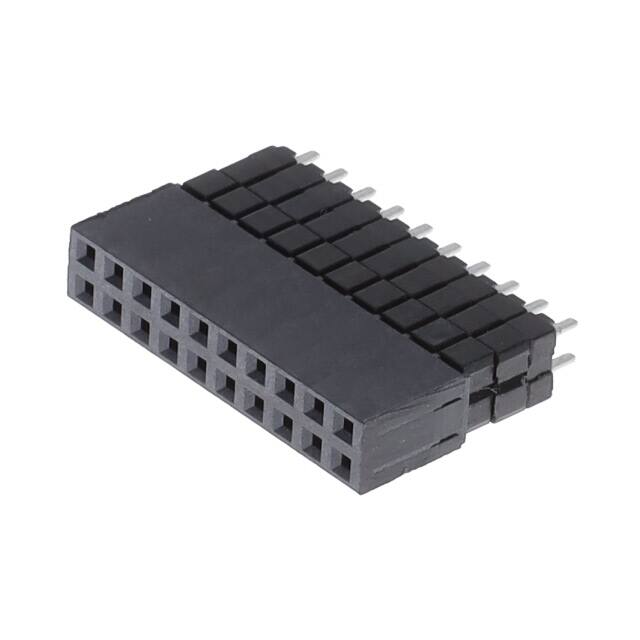

The ESW-110-33-L-D is a 20-position, dual-row elevated socket connector from Samtec's ESW series. It features phosphor bronze contacts with 10 µ" gold plating on the contact area and matte tin on the tail. The insulator is black glass filled polyester with UL94 V-0 flammability rating.
This through-hole connector has a 2.54 mm pitch and 2.29 mm contact length. It is rated for 5.2 A per contact and 515 VAC when mated with TSW or ESQ series (datasheet rating). Operating temperature range is -55°C to +125°C with gold plating. The push-pull fastening type ensures secure mating.
Designed for board-to-board applications, the elevated socket provides a 16.13 mm insulation height. It accepts a mating insertion depth of 3.68 mm to 6.35 mm. The solder tail lead style makes it suitable for wave soldering processes (note: lead-free solderable is not supported according to datasheet).
20 positions in 2 rows.
2.54 mm (0.100").
5.2 A per contact (2 pins powered).
515 VAC when mated with TSW or ESQ series.
Through Hole.
-55°C to +125°C (with gold plating).
Phosphor bronze with gold plating.
