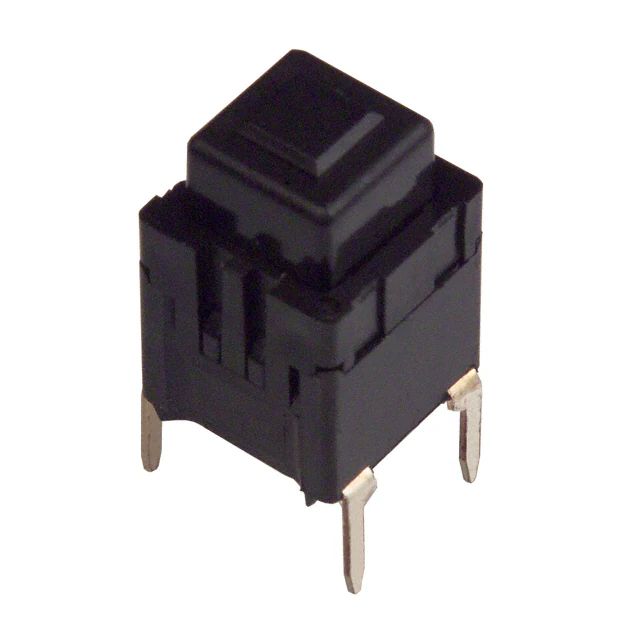

ESE-20C343 The Panasonic Electronic Components ESE-20C343 is a pushbutton switch with a SPST-NO circuit. It offers tactile feedback and through-hole mounting.
Mfr Part #:

ESE-20C343

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ESE-20C343 is a pushbutton switch with a SPST-NO circuit. It offers tactile feedback and through-hole mounting.
✓ Total Stock: 45 pcs
$ Price Range: $0.75

ESE-20C343 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESE-20C343 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Lead Style
Mounting Type
Operating Force
Operating Mode
Storage Temperature
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

ESE-20C343 Description

Short technical summary and product information.

This Panasonic Electronic Components ESE-20C343 is a momentary pushbutton switch designed for various applications. It features a 1-pole, 1-throw (SPST-NO) circuit configuration.



The switch has a current rating of 100mA at 14V DC and provides user-friendly tactile feedback when operated. It is designed for through-hole mounting and has a black square button actuator.



Recommended applications include operation switches for automobiles, such as controls for heater, overdrive, and steering systems. The switch has a mounting height of 8.9 mm and a full travel of 2.5 mm.

ESE-20C343 Quick Information

Product Type: Pushbutton Switch
Series: ESE20C
Canonical Name: Panasonic Electronic Components ESE20C Series Pushbutton Switch
Subcategory: Pushbutton Switch

ESE-20C343 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

ESE-20C343 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ESE-20C343 Features

  • Momentary pushbutton switch with tactile feedback.
  • Single Pole Single Throw Normally Open (SPST-NO) circuit.
  • Rated for 100mA at 14V DC.
  • Through hole mounting with PC pin termination.
  • Designed for automotive and consumer product use.

ESE-20C343 Applications

  • Ideal for automotive control switches.
  • Suitable for heater control applications.
  • Used for overdrive switch functions.
  • Applicable for steering system controls.

ESE-20C343 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the ESE-20C343 pushbutton switch?

The voltage rating for the ESE-20C343 pushbutton switch is 14 V DC.

What is the current rating of the ESE-20C343 switch?

The current rating of the ESE-20C343 switch is 100mA (DC).

What type of circuit does the ESE-20C343 pushbutton switch have?

The ESE-20C343 pushbutton switch has a SPST-NO (Single Pole Single Throw Normally Open) circuit.

How is the ESE-20C343 switch mounted?

The ESE-20C343 switch is designed for through-hole mounting.

What is the operating mode of the ESE-20C343 switch?

The operating mode of the ESE-20C343 switch is non-lock.

Does the ESE-20C343 switch offer tactile feedback?

Yes, the ESE-20C343 switch offers user-friendly tactile feedback when operated.
