ESE-18L11B
Panasonic Electronic Components
The Panasonic Electronic Components ESE-18L11B is a detector switch with a SPST-NO circuit. It operates at 5V and has a current rating of 10mA.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,239 pcs
|
3239 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

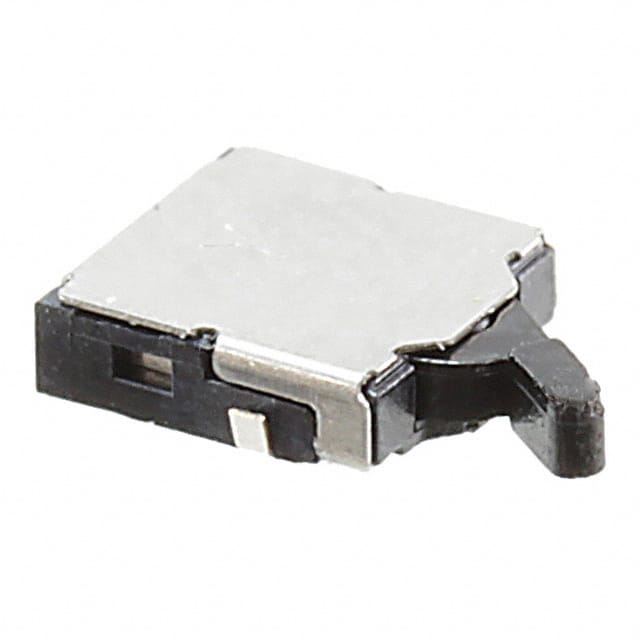

The Panasonic Electronic Components ESE-18R11B is a detector switch designed for various applications. It operates at a voltage rating of 5V and has a current rating of 10mA (DC). The switch features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
This component is designed for surface mounting with a right-angle termination style, utilizing a J Lead. It has an operating temperature range of -10°C to 60°C and requires an operating force of 30gf. The actuator type is an angled toggle, functioning as a detector.
Key specifications include its 5V voltage rating and 10mA current capacity, making it suitable for low-power detection applications. The SPST-NO circuit provides a simple on-off switching function. Its surface mount, right-angle form factor with J leads facilitates integration into printed circuit boards.
The switch is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 5V.
The current rating is 10mA (DC).
The operating temperature range is -10°C to 60°C.
It uses a surface mount, right angle mounting type.
The circuit configuration is SPST-NO.
