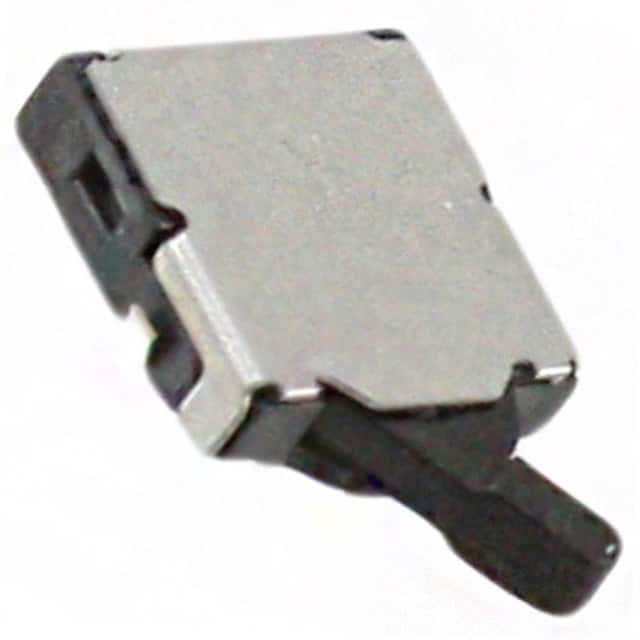

ESE-18L11B The Panasonic Electronic Components ESE-18L11B is a detector switch with a SPST-NO circuit. It operates at 5V and has a current rating of 10mA.
Mfr Part #:

ESE-18L11B

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ESE-18L11B is a detector switch with a SPST-NO circuit. It operates at 5V and has a current rating of 10mA.
✓ Total Stock: 4,402 pcs
$ Price Range: $0.75

ESE-18L11B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4,402 pcs
On Request
4402 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESE-18L11B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Features
Lead Style
Mounting Type
Operating Force
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

ESE-18L11B Description

Short technical summary and product information.

The Panasonic Electronic Components ESE-18L11B is a detector switch designed for various applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration, making it suitable for detecting specific conditions.



This switch operates at a voltage rating of 5V and has a current rating of 10mA (DC). The operating force required is 30gf. It is designed for surface mounting with a right-angle orientation and utilizes a J Lead termination style.



The operating temperature range for this component is -10°C to 60°C. It also includes a 'Board Guide' feature. The switch function is Off-Mom, indicating momentary operation.



This detector switch is RoHS3 compliant and has an MSL rating of 1.

ESE-18L11B Quick Information

Product Type: Detector Switch
Canonical Name: Panasonic Electronic Components ESE-18L11B Detector Switch
Subcategory: Limit Switch

ESE-18L11B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ESE-18L11B Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ESE-18L11B Features

  • SPST-NO circuit for detection.
  • Operates at 5V with 10mA rating.
  • Surface mount, right angle design.
  • J Lead termination style.
  • Operates between -10°C and 60°C.

ESE-18L11B Applications

  • Used for general detection purposes.
  • Suitable for compact PCB designs.
  • Ideal for low-power switching needs.
  • Component for automated assembly.

ESE-18L11B FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ESE-18L11B switch?

The operating voltage for the ESE-18L11B switch is 5V.

What is the current rating of the ESE-18L11B detector switch?

The current rating is 10mA (DC).

What is the operating temperature range for this switch?

The operating temperature range is -10°C to 60°C.

How is the ESE-18L11B switch mounted?

It is a surface mount component with a right-angle orientation.

What is the circuit type of the ESE-18L11B?

The circuit type is SPST-NO.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1.

ESE-18L11B Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
ESE-18R11B
ESE-18R11B
Panasonic Electronic Components
The Panasonic Electronic Components ESE-18R11B is a detector switch with a 5V voltage rating and 10mA current capacity. It features a surface mount, right angle termination style.
View Part
