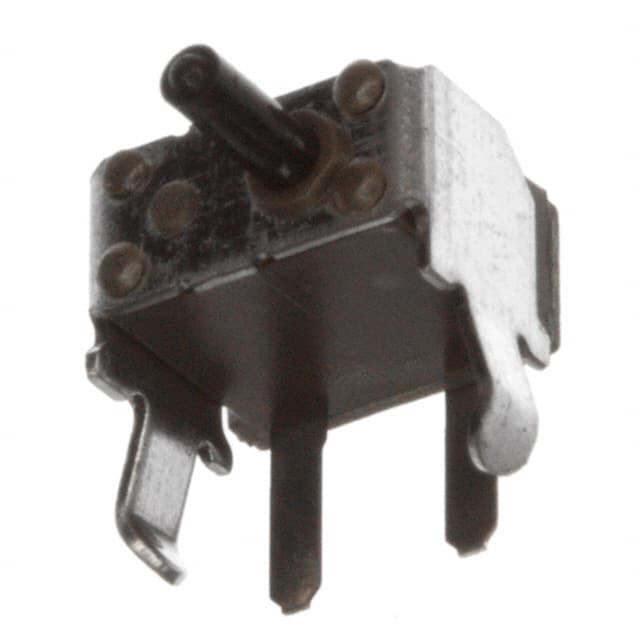

ESE-105SH1 The Panasonic Electronic Components ESE-105SH1 is a limit switch with a 20V voltage rating and 50mA current capacity. It features a SPST-NO circuit and Through Hole mounting.
Mfr Part #:

ESE-105SH1

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components ESE-105SH1 is a limit switch with a 20V voltage rating and 50mA current capacity. It features a SPST-NO circuit and Through Hole mounting.
✓ Total Stock: 40 pcs
$ Price Range: $0.75

ESE-105SH1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ESE-105SH1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Mounting Type
Operating Force
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

ESE-105SH1 Description

Short technical summary and product information.

The Panasonic Electronic Components ESE-105SH1 is a limit switch designed for various applications. It operates with a voltage rating of 20V and a current rating of 50mA (DC).



The switch features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration and an Off-Mom function. The actuator type is an overtravel plunger, providing reliable actuation.



Mounting is achieved via a Through Hole, Right Angle termination style using PC Pins. The operating temperature range for this component is -10°C to 70°C, with an operating force of 40gf.



This component is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. It is suitable for applications requiring precise detection and switching.

ESE-105SH1 Quick Information

Product Type: Limit Switch
Canonical Name: Panasonic Electronic Components ESE-105SH1 Limit Switch
Subcategory: Limit Switch

ESE-105SH1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ESE-105SH1 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ESE-105SH1 Features

  • 20V voltage rating and 50mA current.
  • SPST-NO circuit configuration.
  • Off-Mom switch function.
  • Through Hole, Right Angle mounting.
  • Overtravel plunger actuator type.

ESE-105SH1 Applications

  • Ideal for position sensing.
  • Used in automated machinery.
  • Suitable for control panels.
  • Applicable in industrial equipment.

ESE-105SH1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the ESE-105SH1?

-10°C to 70°C

What is the voltage rating of the ESE-105SH1 limit switch?

20 V

What is the current rating for the ESE-105SH1?

50mA (DC)

What type of circuit does the ESE-105SH1 have?

SPST-NO

How is the ESE-105SH1 mounted?

Through Hole, Right Angle

What is the RoHS status of the ESE-105SH1?

RoHS3 Compliant

What is the Moisture Sensitivity Level (MSL) for the ESE-105SH1?

1 Unlimited
