| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Number of Unidirectional Channels | |
| Operating Temperature | |
| Package / Case | |
| Peak Pulse Current | |
| Peak Pulse Power | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Technology | |
| Type | |
| Unidirectional Channels | |
| Voltage |

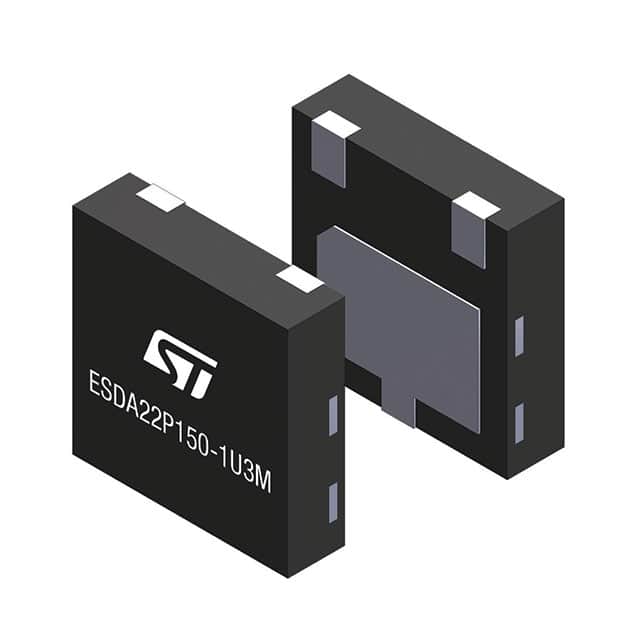

The ESDA22P150-1U3M is a Zener-based transient voltage suppression (TVS) diode from STMicroelectronics. It is designed for general purpose circuit protection, offering a peak pulse power rating of 330W and a clamping voltage of 27.5V at a peak pulse current of 11A.
This device features two unidirectional channels in a compact surface mount 3-UDFN exposed pad package (3-QFN 2x2). It operates over a wide temperature range from -55°C to 150°C, making it suitable for demanding environments. The mounting type is surface mount, facilitating automated assembly.
Typical applications include protection of sensitive electronics from voltage transients in consumer, industrial, and automotive systems. The Zener technology ensures fast response and reliable clamping performance.
27.5V maximum.
11A maximum.
330W maximum.
3-UDFN Exposed Pad (3-QFN 2x2).
2 unidirectional channels.
-55°C to 150°C.
Surface mount.
