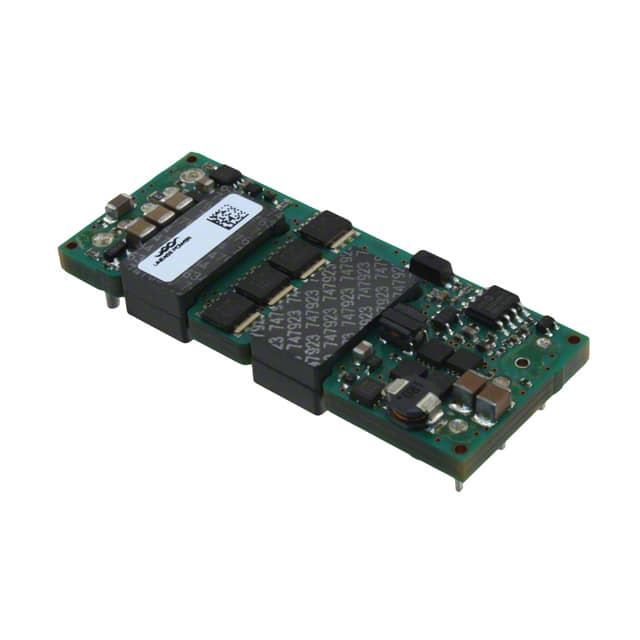

The EQD075A41Z is a high-efficiency isolated DC-DC converter module from ABB Power Electronics, part of the EQD075 series. It accepts a wide input voltage range of 18V to 60V and provides a programmable output voltage from 3.0V to 5.5V (factory set for 3.3V to 5V). The module delivers up to 75W of output power with a maximum output current of 20A at 3.3V and 15A at 5V. Typical efficiency reaches 92% at 5V full load with 24V input, contributing to reduced thermal management requirements.
The converter features industry-standard eighth-brick footprint (57.9 mm x 22.8 mm x 8.5 mm) with through-hole mounting in an 8-DIP module package. It includes comprehensive protection features such as overcurrent, overvoltage, overtemperature, and undervoltage lockout. Control features include remote on/off with active low enable and remote sense for accurate output voltage regulation. Basic insulation of 1500V is provided between input and output.
This module is designed for distributed power architectures, wireless networks, optical and access network equipment, and enterprise networking applications. It is certified to UL 60950-1, CSA 22.2 No. 60950-1-03, and VDE 0805 (EN60950-1) safety standards.
The input voltage range is 18V to 60V (3:1 ratio).
It is an 8-DIP Module in a 1/8 Brick footprint with Through Hole mounting.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant (verified).
Typical efficiency is 92% at 5V output, full load, with 24V input.
Maximum output current is 20A at 3.3V output and 15A at 5V output.
Overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO).
