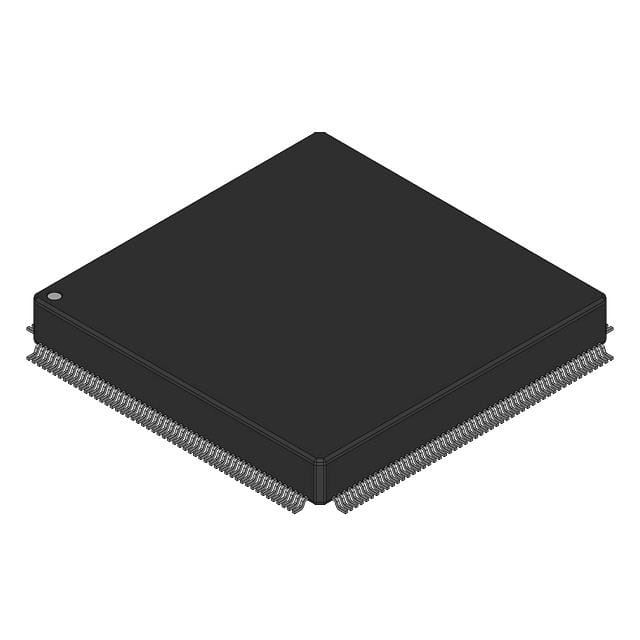

EPM9400RC208-20 The Altera EPM9400RC208-20 is a Complex Programmable Logic Device (CPLD) with 400 macrocells and a 20ns propagation delay. It features a surface mount package.
Mfr Part #:

EPM9400RC208-20

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera EPM9400RC208-20 is a Complex Programmable Logic Device (CPLD) with 400 macrocells and a 20ns propagation delay. It features a surface mount package.
✓ Total Stock: 1,391 pcs

EPM9400RC208-20 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
1,391 pcs
On Request
1391 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM9400RC208-20 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of Gates
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Supplier Package
Voltage Supply
View Similar Products (0)

EPM9400RC208-20 Description

Short technical summary and product information.

The Altera EPM9400RC208-20 is a high-performance Complex Programmable Logic Device (CPLD) designed for embedded applications. This device offers 400 macrocells and 8000 gates, providing significant logic capacity for complex designs.



Key electrical characteristics include a maximum propagation delay of 20 ns and an operating voltage range of 4.75V to 5.25V. It supports in-system programmability, allowing for flexible design iterations and updates.



The CPLD is housed in a 208-pin RQFP package with an exposed pad, suitable for surface mounting. The operating temperature range is 0°C to 70°C (TA), making it suitable for various environmental conditions.



With 139 I/O pins, the EPM9400RC208-20 offers ample connectivity for interfacing with other components in an embedded system. Its robust feature set makes it a reliable choice for digital logic implementation.

EPM9400RC208-20 Quick Information

Product Type: CPLD
Canonical Name: Altera EPM9400RC208-20 Complex Programmable Logic Device
Subcategory: Complex Programmable Logic Device

EPM9400RC208-20 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM9400RC208-20 Features

  • 400 macrocells for complex logic.
  • 20 ns maximum propagation delay.
  • Operates from 4.75V to 5.25V.
  • Surface mount 208-RQFP package.
  • In system programmable functionality.

EPM9400RC208-20 Applications

  • Ideal for digital logic implementation.
  • Suitable for embedded system designs.
  • Provides flexible design iterations.
  • Offers ample I/O for connectivity.

EPM9400RC208-20 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the EPM9400RC208-20?

The operating voltage range is 4.75V to 5.25V.

What package type is used for the EPM9400RC208-20?

It uses a 208-BFQFP Exposed Pad package, with a 208-RQFP (28x28) footprint.

What is the maximum operating temperature for this device?

The operating temperature range is from 0°C to 70°C.

Is the EPM9400RC208-20 RoHS compliant?

It is marked as RoHS3 compliant, but the compliance status is unverified.
