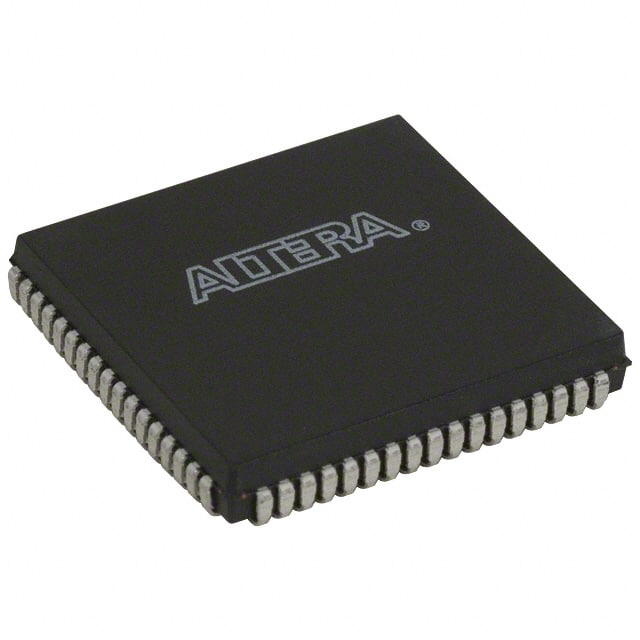

EPM7096LC68-15 The Intel EPM7096LC68-15 is a CPLD with 96 macrocells and 1800 usable gates. It operates at 5.0V and features a 15ns propagation delay.
Mfr Part #:

EPM7096LC68-15

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPM7096LC68-15 is a CPLD with 96 macrocells and 1800 usable gates. It operates at 5.0V and features a 15ns propagation delay.
✓ Total Stock: 3,510 pcs

EPM7096LC68-15 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,510 pcs
On Request
3510 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM7096LC68-15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Mounting Type
Number of Gates
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Supplier Package
Voltage Supply
View Similar Products (0)

EPM7096LC68-15 Description

Short technical summary and product information.

The Intel EPM7096LC68-15 is a high-performance, EE PLD from the MAX 7000 family. It offers 96 macrocells and 1800 usable gates, making it suitable for various logic implementation tasks. This device operates within a supply voltage range of 4.75V to 5.25V and features a maximum propagation delay of 15 ns.



Designed for surface mounting, the EPM7096LC68-15 comes in a 68-PLCC (J-Lead) package. It operates at temperatures between 0°C and 70°C (TA). The device supports in-system programmability (ISP) via an IEEE 1149.1 JTAG interface and is RoHS3 compliant. With 52 I/O pins and 6 logic elements, it provides flexibility for complex digital designs.

EPM7096LC68-15 Quick Information

Product Type: CPLD
Canonical Name: EPM7096LC68-15 Complex Programmable Logic Device
Subcategory: Complex Programmable Logic Device

EPM7096LC68-15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM7096LC68-15 Features

  • 96 macrocells and 1800 usable gates.
  • 15ns maximum propagation delay.
  • 5.0V operation with 4.75V to 5.25V range.
  • Surface mount 68-PLCC (J-Lead) package.
  • RoHS3 compliant and MSL 1 rated.

EPM7096LC68-15 Applications

  • Logic implementation in digital systems.
  • Programmable logic design tasks.
  • Embedded system control functions.
  • Interface logic for various components.

EPM7096LC68-15 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of macrocells in the EPM7096LC68-15?

The EPM7096LC68-15 has 96 macrocells.

What is the maximum propagation delay for the EPM7096LC68-15?

The maximum propagation delay (tpd) for the EPM7096LC68-15 is 15 ns.

What is the operating voltage range for the EPM7096LC68-15?

The EPM7096LC68-15 operates within a voltage supply range of 4.75V to 5.25V.

What package type is the EPM7096LC68-15 supplied in?

The EPM7096LC68-15 is supplied in a 68-LCC (J-Lead) package.

What is the operating temperature range for this CPLD?

The operating temperature range for the EPM7096LC68-15 is 0°C to 70°C (TA).

Is the EPM7096LC68-15 RoHS compliant?

The EPM7096LC68-15 is RoHS3 Compliant.
