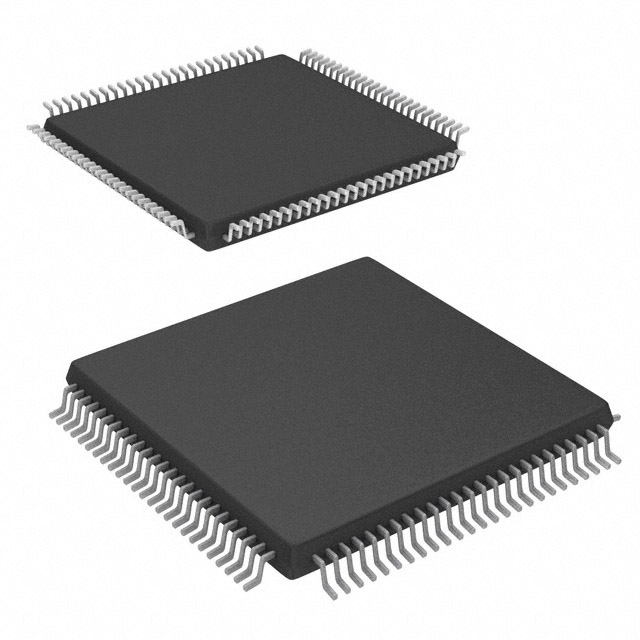

EPM570T100I5N The Intel EPM570T100I5N is a high-performance CPLD from the MAX II series. It offers 570 logic elements and 440 macrocells in a 100-pin TQFP package.
Mfr Part #:

EPM570T100I5N

Available from 2 distributors
Mfr Name: Intel
Intel
The Intel EPM570T100I5N is a high-performance CPLD from the MAX II series. It offers 570 logic elements and 440 macrocells in a 100-pin TQFP package.
✓ Total Stock: 5,063 pcs

EPM570T100I5N Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
63 pcs
On Request
63 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM570T100I5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

EPM570T100I5N Description

Short technical summary and product information.

The Intel EPM570T100I5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX II family. Designed for efficient logic integration and flexibility, this device features 570 logic elements and 440 macrocells, providing substantial programmable logic capacity.



Key electrical specifications include a maximum propagation delay of 5.4 ns and support for dual internal voltage supplies of 2.5V and 3.3V. It offers 76 I/O pins for versatile interfacing.



The EPM570T100I5N is designed for in-system programmability, allowing for dynamic updates and seamless integration into existing systems. It operates within an industrial temperature range of -40°C to 100°C (TJ).



This CPLD is housed in a compact 100-pin TQFP (Thin Quad Flat Pack) package, suitable for surface mounting on PCBs. Its robust design makes it suitable for various applications requiring high-density logic integration.

EPM570T100I5N Quick Information

Product Type: CPLD
Series: MAX II
Canonical Name: Intel EPM570T100I5N CPLD
Subcategory: CPLD

EPM570T100I5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM570T100I5N Features

  • 570 logic elements and 440 macrocells.
  • Maximum propagation delay of 5.4 ns.
  • Supports 2.5V and 3.3V internal voltage.
  • 76 input/output pins available.
  • In-system programmable for flexibility.

EPM570T100I5N Applications

  • Ideal for telecommunications applications.
  • Suitable for consumer electronics control.
  • Used in industrial automation systems.
  • Applicable to automotive electronics.
  • Can be used in medical devices.

EPM570T100I5N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EPM570T100I5N?

The EPM570T100I5N supports internal voltage supplies of 2.5V and 3.3V.

What package type is the EPM570T100I5N supplied in?

The EPM570T100I5N is supplied in a 100-TQFP (14x14) package.

What is the operating temperature range for this CPLD?

The operating temperature range for the EPM570T100I5N is -40°C to 100°C (TJ).

What is the RoHS compliance status of the EPM570T100I5N?

The EPM570T100I5N is RoHS3 Compliant.

What is the maximum propagation delay for the EPM570T100I5N?

The maximum propagation delay (tpd(1) Max) for the EPM570T100I5N is 5.4 ns.

How many logic elements does the EPM570T100I5N have?

The EPM570T100I5N features 570 logic elements.

What is the number of I/O pins on the EPM570T100I5N?

The EPM570T100I5N has 76 I/O pins.

EPM570T100I5N Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
EPM570T100I5
EPM570T100I5
Intel
The Intel EPM570T100I5 is a Complex Programmable Logic Device (CPLD) featuring 570 logic elements and 440 macrocells. It operates at 2.5V or 3.3V and has a propagation delay of 5.4 ns.
View Part
