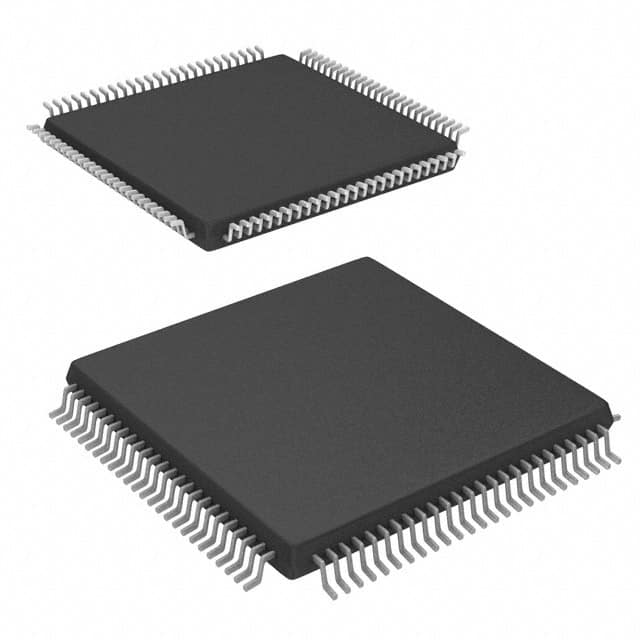

EPM570T100I5 The Intel EPM570T100I5 is a Complex Programmable Logic Device (CPLD) featuring 570 logic elements and 440 macrocells. It operates at 2.5V or 3.3V and has a propagation delay of 5.4 ns.
Mfr Part #:

EPM570T100I5

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPM570T100I5 is a Complex Programmable Logic Device (CPLD) featuring 570 logic elements and 440 macrocells. It operates at 2.5V or 3.3V and has a propagation delay of 5.4 ns.
✓ Total Stock: 3 pcs

EPM570T100I5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM570T100I5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

EPM570T100I5 Description

Short technical summary and product information.

The Intel EPM570T100I5 is a Complex Programmable Logic Device (CPLD) from the MAX II family. This device offers 570 logic elements and 440 macrocells, making it suitable for various digital logic applications. It supports operating voltages of 2.5V and 3.3V, with a maximum propagation delay of 5.4 ns.



Designed for in-system programmability, the EPM570T100I5 is housed in a 100-TQFP (14x14) package and is intended for surface mounting. The operating temperature range is -40°C to 100°C (TJ), providing flexibility for different environmental conditions. With 76 I/O pins, this CPLD facilitates integration into complex electronic systems.

EPM570T100I5 Quick Information

Product Type: CPLD
Canonical Name: EPM570T100I5 CPLD
Subcategory: Complex Programmable Logic Device

EPM570T100I5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM570T100I5 Features

  • 570 logic elements and 440 macrocells.
  • 5.4 ns maximum propagation delay.
  • Operates at 2.5V and 3.3V supply.
  • Surface mount 100-TQFP package.
  • Wide -40°C to 100°C operating temperature.

EPM570T100I5 Applications

  • Suitable for digital logic designs.
  • Used in embedded systems.
  • Ideal for in-system programmability.
  • Flexible I/O for system integration.

EPM570T100I5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the EPM570T100I5?

The EPM570T100I5 has 570 logic elements.

What is the maximum propagation delay for the EPM570T100I5?

The maximum propagation delay is 5.4 ns.

What are the supported operating voltages for this CPLD?

This CPLD supports operating voltages of 2.5V and 3.3V.

What is the operating temperature range for the EPM570T100I5?

The operating temperature range is -40°C to 100°C (TJ).

What type of package is the EPM570T100I5 in?

The EPM570T100I5 is in a 100-TQFP (14x14) package.

How is the EPM570T100I5 mounted?

The EPM570T100I5 is a surface mount device.

EPM570T100I5 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
EPM570T100I5N
EPM570T100I5N
Intel
The Intel EPM570T100I5N is a high-performance CPLD from the MAX II series. It offers 570 logic elements and 440 macrocells in a 100-pin TQFP package.
