| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Logic Elements | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Operating Voltage | |
| Supplier Device Package | |
| Total RAM Bits | |
| Voltage | |
| io_pins | |
| io_pins (Maximum) | |
| logic_array_blocks | |
| ram_bits (Maximum) | |
| system_gates (Maximum) |
The Intel EP20K60EFC144-2XN is a Field Programmable Gate Array (FPGA) from the APEX-20KE family. It features 2560 logic elements and 2560 logic array blocks, providing significant capacity for complex digital designs.
This FPGA offers 32,768 bits of embedded RAM and supports up to 93 input/output pins. It operates within a supply voltage range of 1.71V to 1.89V and has an operating temperature range of 0°C to 85°C (TJ).
The device is designed for surface mounting and comes in a 144-FBGA package. Its architecture integrates look-up table (LUT) logic, product-term logic, and embedded memory, making it suitable for system-on-a-programmable-chip (SOPC) integration.
Key specifications include 162,000 system gates and support for MultiVolt I/O interface voltage levels, allowing compatibility with 1.8V, 2.5V, 3.3V, and 5.0V devices.
The EP20K60EFC144-2XN has 2560 logic elements.
The EP20K60EFC144-2XN has 93 I/O pins.
The operating voltage for the EP20K60EFC144-2XN is 1.71V to 1.89V.
The operating temperature for the EP20K60EFC144-2XN is 0°C to 85°C (TJ).

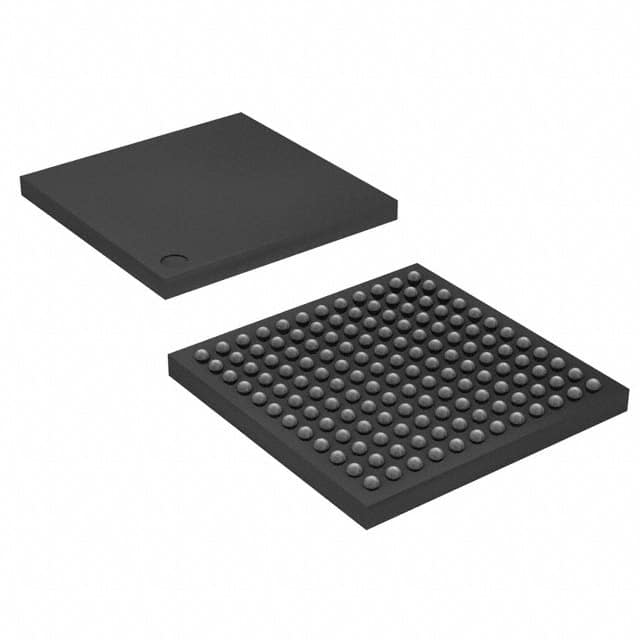

The EP20K60EFC144-2XN is supplied in a 144-FBGA (13x13) package.
The EP20K60EFC144-2XN has 32,768 total RAM bits.
