| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,838 pcs
|
1838 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Q @ Freq | |
| Self Resonant Frequency | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

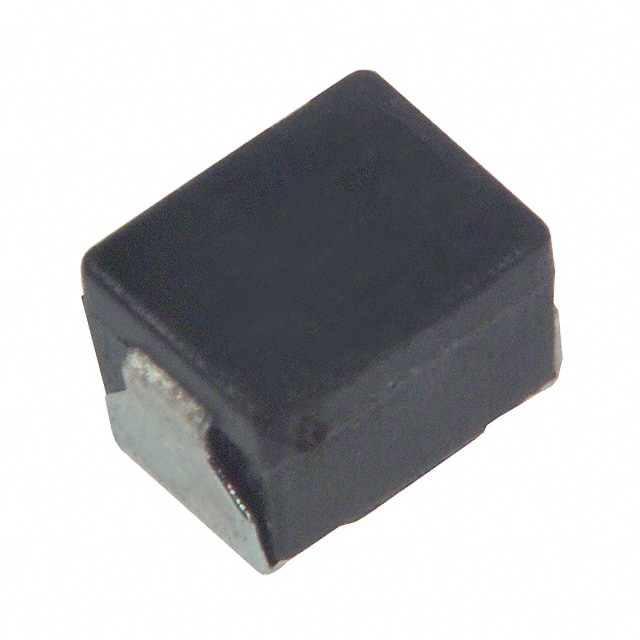

This Panasonic Electronic Components ELJ-NA5R6JF is a wirewound fixed inductor designed for high-frequency applications. It offers an inductance value of 5.6µH with a tolerance of ±5% and a DC resistance of 8.7 Ohms maximum.
The inductor has a current rating of 65mA and a Q factor of 13 at 7.96MHz. Its self-resonant frequency is 46MHz. The component is unshielded and constructed with a non-magnetic core.
Designed for surface mounting, the ELJ-NA5R6JF comes in a 1210 (3225 Metric) package with dimensions of 3.20mm L x 2.50mm W x 2.40mm H. It is suitable for reflow or flow soldering.
Recommended applications include RF circuitry for cellular phones and wireless communication equipment. The product is RoHS3 compliant and has an MSL of 1.
The inductance of the ELJ-NA5R6JF is 5.6 µH.
The tolerance for the ELJ-NA5R6JF inductor is ±5%.
The maximum DC current rating for the ELJ-NA5R6JF is 65 mA.
The DC Resistance (DCR) of the ELJ-NA5R6JF is 8.7 Ohm maximum.
The package type for the ELJ-NA5R6JF is 1210 (3225 Metric).
The ELJ-NA5R6JF is designed for surface mounting.
