| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Built in Switch | |
| Detent | |
| Encoder Type | |
| Mounting Type | |
| Orientation | |
| Output Type | |
| Pulses per Revolution | |
| Rotational Life (Cycles Min) | |
| Termination Style |

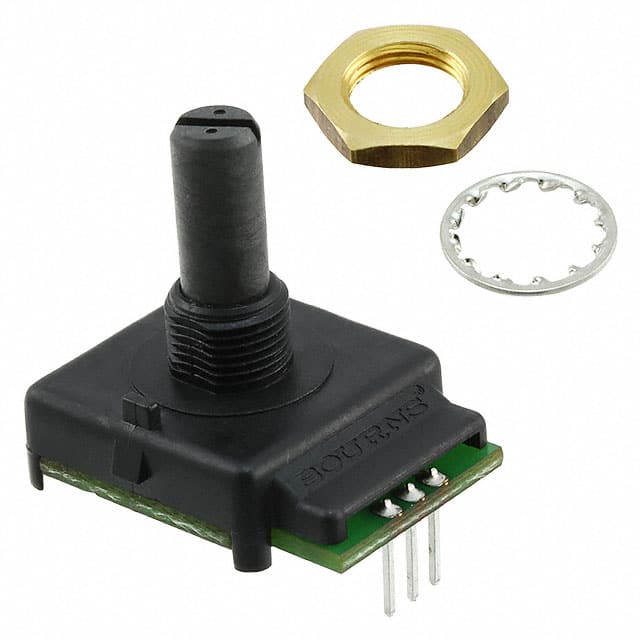

The Bourns ECW1J-B24-AC0024L is a mechanical rotary encoder designed for precise rotational input. It provides 24 pulses per revolution, offering good resolution for various applications. The encoder features a panel and PCB through-hole mounting type, ensuring secure integration into designs. Its actuator is a 1/4" diameter slotted end, and it includes a detent for tactile feedback. With a rotational life of at least 200,000 cycles, this encoder is built for durability. The output type is Quadrature (Incremental), suitable for position sensing.
This component is RoHS3 compliant, indicating adherence to environmental standards. The mounting style and termination via PC pins facilitate straightforward assembly onto printed circuit boards. The vertical orientation is standard for many panel-mount applications. Its mechanical design ensures reliable operation in applications requiring discrete rotational steps and feedback.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output type is Quadrature (Incremental).
It provides 24 pulses per revolution.
The rotational life is a minimum of 200,000 cycles.
It supports Panel and PCB Through Hole mounting.
Yes, it is RoHS3 Compliant.
