| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Category Temperature Range | |
| Dielectric Material | |
| Dissipation Factor | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| Withstand Voltage |

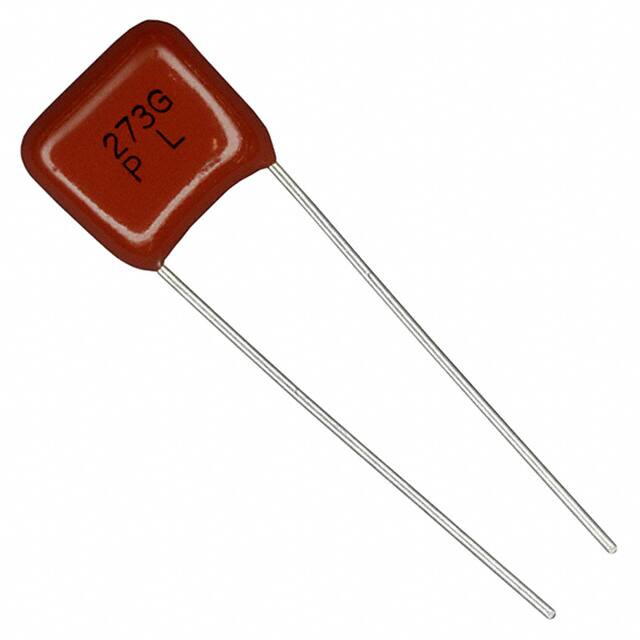

The Panasonic ECQ-P1H273GZ is a polypropylene film capacitor with a capacitance of 0.027µF and a tolerance of ±2%. It is rated for 50V DC operation and features a radial through-hole package with 5.00mm lead spacing and crimped PC pin terminations.
This capacitor is designed for high frequency and switching applications, offering excellent temperature and frequency characteristics along with long-term stability. The dissipation factor is 0.1% maximum at 20°C and 1kHz, and insulation resistance is 45000 MΩ minimum for capacitance values up to 0.33µF.
The operating temperature range is -40°C to +85°C, with derating required above 70°C. The withstand voltage is 125V (rated voltage x 250% for 1-5 seconds). The component is supplied in ammo packaging and is RoHS3 and REACH compliant.
The capacitance is 0.027 µF with a tolerance of ±2%.
The rated voltage is 50V DC.
The dielectric material is Polypropylene (PP).
The operating temperature range is -40°C to +85°C, with derating required above 70°C.
The package is radial through-hole with a lead spacing of 5.00mm and crimped PC pin terminations.
The dissipation factor is 0.1% maximum at 20°C and 1kHz.
Recommended applications include high frequency and switching circuits, as well as Dolby and oscillation circuits.
