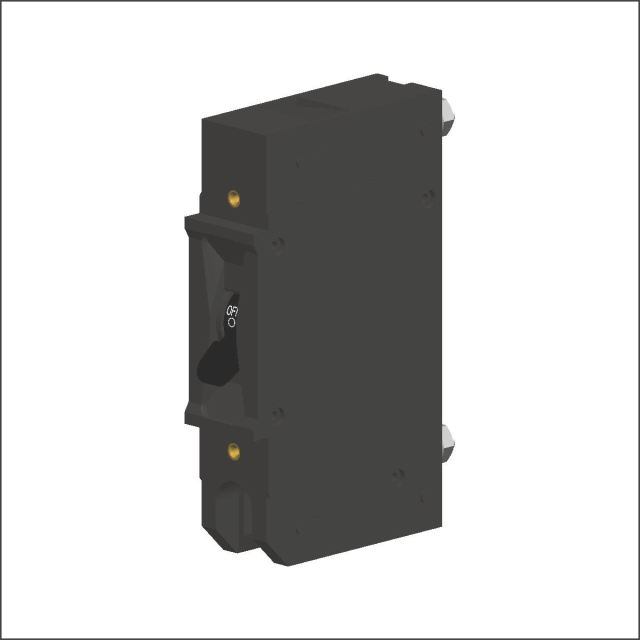

The EA1-B0-14-810-22A-BC from Littelfuse Inc. is a hydraulic-magnetic circuit breaker designed for demanding OEM environments. This single-pole breaker offers a current rating of 100A and a voltage rating of 600VDC.
Key electrical specifications include a medium interrupting capacity of 5,000 amps and a DC medium trip time delay. The breaker is designed for panel mounting and features a lever actuator for operation. It is illuminated with 'None'.
This circuit breaker is part of the E-Series product line. Agency approvals include CCC, CSA, and UL489 Listed. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected. These compliance details are based on available data and may require verification.
The circuit breaker is rated for 600V.
It is rated for 100A continuous current.
It is a single-pole breaker.
It uses a magnetic hydraulic delay mechanism.
It has a medium interrupting capacity of 5,000A.
Panel mount.
Stud terminals.
