| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,685 pcs
|
22685 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The E3M0060065K from Wolfspeed is an N-channel silicon carbide (SiC) power MOSFET designed for high-voltage, high-efficiency power conversion. It is rated for a maximum drain-source voltage of 650V and a continuous drain current of 37A at 25°C (26A at 100°C). The device uses third-generation SiC MOSFET technology to achieve low conduction and switching losses.
The MOSFET offers a typical on-resistance of 60mΩ and a maximum of 79mΩ at 15V gate drive. Its low gate charge (49nC) and low capacitances (input 1170pF, output 72pF, reverse transfer 6pF) support high-speed switching. The recommended gate-drive voltage is +15V for on-state and -4V to 0V for off-state, with an absolute maximum gate-source voltage of -8V to +19V.

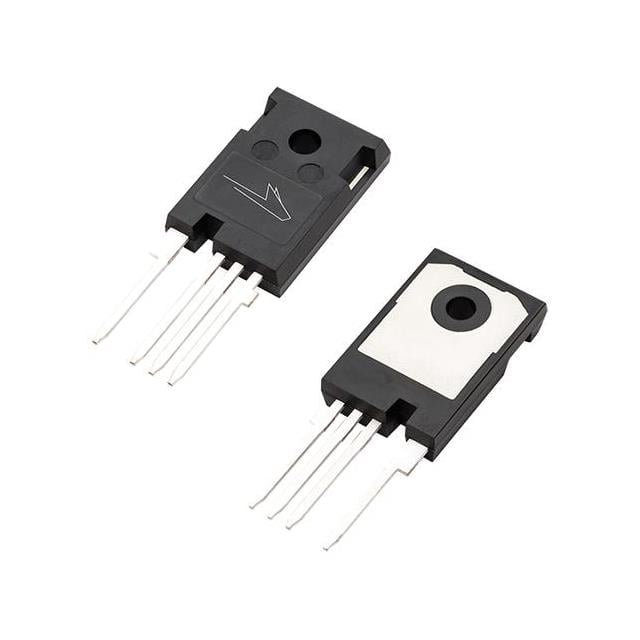

The E3M0060065K is housed in a TO-247-4L through-hole package with a separate driver source pin, which helps reduce gate-loop inductance. The part is automotive qualified per AEC-Q101 and is RoHS3 compliant and halogen-free. It is intended for applications such as electric vehicle battery chargers and high-voltage DC/DC converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.64 | $18.64 |
| 30+ | $11.57 | $11.57 |
| 60+ | $10.73 | $10.73 |
| 120+ | $10.02 | $10.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 650V.
It is available in a TO-247-4L through-hole package (TO-247-4 case).
The operating junction temperature range is -40°C to +175°C.
Yes, it is RoHS3 compliant and halogen-free.
The continuous drain current is 37A at Tc=25°C and 26A at Tc=100°C.
Yes, it is AEC-Q101 automotive qualified.
The typical on-resistance is 60mΩ, with a maximum of 79mΩ at VGS=15V.
