| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,253 pcs
|
5253 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style |

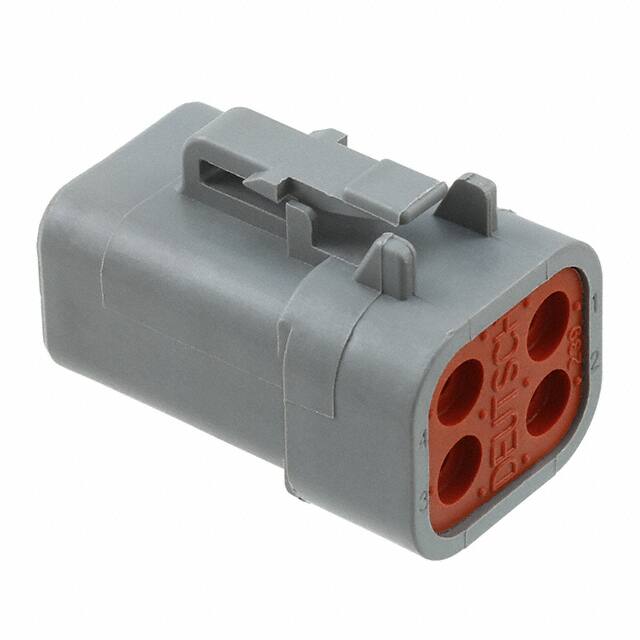

The TE Connectivity DTP06-4S is a rectangular connector housing designed for demanding environments. As a 4-position plug housing, it accommodates female socket contacts (not included) with a 2-row configuration. The housing uses a latch lock fastening system for secure mating and features a gray thermoplastic body rated for free hanging (in-line) mounting.
Rugged environmental protection is provided by IP68 and IP6K9K ratings, making this housing suitable for applications exposed to dust, moisture, and high-pressure washdown. The operating temperature range from -55°C to 125°C ensures reliable performance across extreme conditions.
Contacts are terminated via crimp method (contacts sold separately). The part is part of TE's DT series known for durability in automotive and industrial applications. No pitch or current/voltage ratings are specified on the housing itself, as these depend on the inserted contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.62 | $7.62 |
| 10+ | $5.06 | $5.06 |
| 25+ | $4.74 | $4.74 |
| 50+ | $4.52 | $4.52 |
| 100+ | $4.30 | $4.30 |
| 250+ | $4.03 | $4.03 |
| 500+ | $3.84 | $3.84 |
| 1,000+ | $3.67 | $3.67 |
| 2,500+ | $3.44 | $3.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTP06-4S has 4 positions arranged in 2 rows.
It is designed for free hanging (in-line) mounting.
The housing is rated IP68 and IP6K9K.
The operating temperature range is -55°C to 125°C.
It accepts female socket contacts with crimp termination.
The housing is gray.
Yes, it features a latch lock fastening type.
