| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,555 pcs
|
5555 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Housing Material | |
| Mating Alignment Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Tape & Reel | |
| UL Flammability Rating |

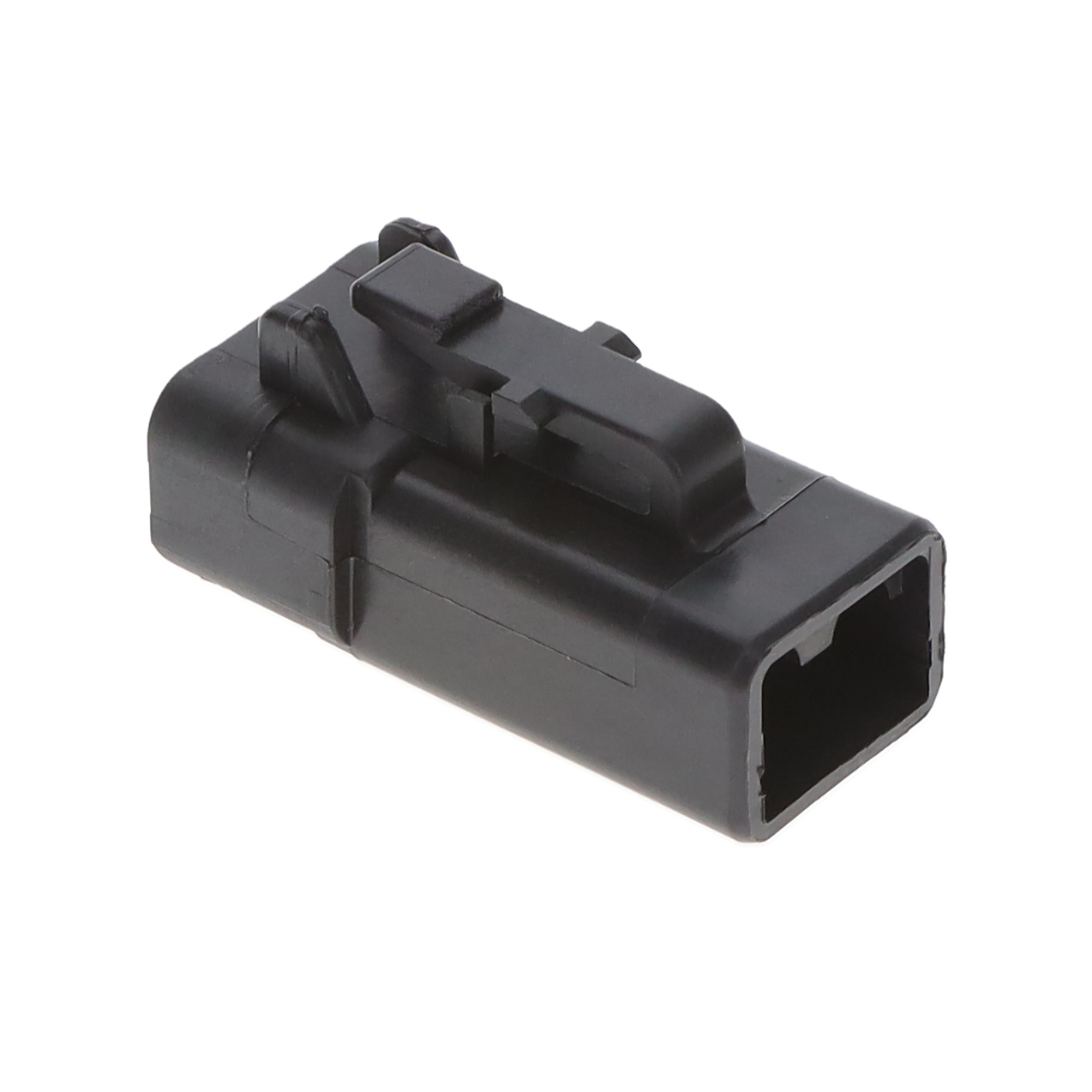

The DTP06-2S-E004 is a 2-position, single-row rectangular plug housing from TE Connectivity's DEUTSCH DTP series. It is designed to house female socket contacts with a crimp termination, enabling wire-to-wire connections in power circuit applications. The housing is sealed to IP68 and IP6K9K, making it suitable for harsh environments such as automotive and industrial systems.
Key specifications include a centerline pitch of 6.7 mm, a mating pin diameter of 2.39 mm, and a contact current rating of 25 A at an operating voltage of 200 VDC. The housing is made of PA GF material and features a latch lock fastening for secure mating. It is polarized for correct alignment and has a cable exit angle of 180°.
The housing is free-hanging (in-line) mountable and accepts insulation diameters from 2.5 to 4 mm. It is serviceable and includes a primary locking feature integrated in the housing. The UL flammability rating is UL 94V-0, and the operating temperature range is -55°C to +125°C.
This product is supplied individually in a package. It is RoHS compliant per the datasheet. The connector system is wire-to-wire with a rectangular shape, and it is not a hybrid connector.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.85 | $2.85 |
| 10+ | $2.43 | $2.43 |
| 25+ | $2.17 | $2.17 |
| 100+ | $2.06 | $2.06 |
| 250+ | $1.93 | $1.93 |
| 500+ | $1.84 | $1.84 |
| 1,000+ | $1.75 | $1.75 |
| 2,500+ | $1.74 | $1.74 |
| 5,000+ | $1.56 | $1.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions.
6.7 mm.
25 A.
200 VDC.
Free hanging (in-line) mounting.
IP6K9K and IP68.
-55°C to +125°C.
