| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Tape & Reel | |
| Termination Style |

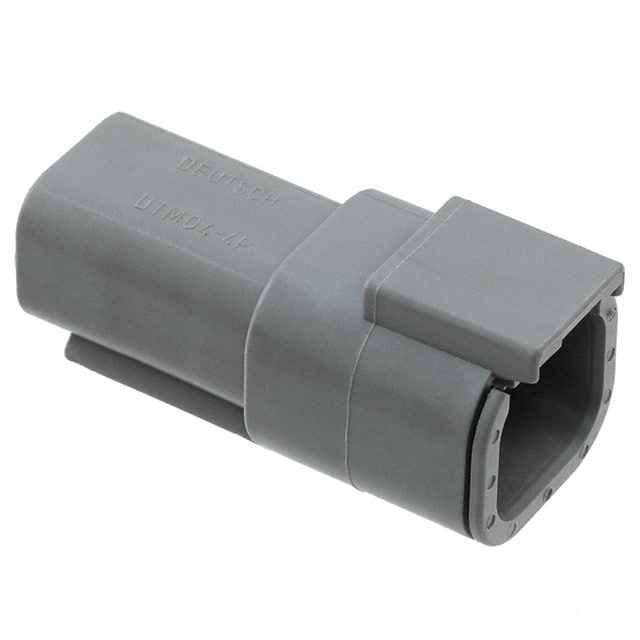

The TE Connectivity DTM04-4P is a rectangular connector housing designed for use with male pin contacts (not included). It offers 4 positions arranged in 2 rows, with a latch holder fastening mechanism for secure mating. The housing is rated IP68 and IP6K9K, providing protection against dust ingress and immersion in water, as well as high-pressure, high-temperature washdown conditions typical in automotive and industrial environments.
This housing features a free hanging (in-line) mounting style, allowing flexible installation in wire harness applications. Contacts are terminated via crimp, enabling reliable and durable wire connections. The operating temperature range of -55°C to 125°C ensures suitability for extreme thermal environments. The gray housing color is a standard finish for this series.
As a connector housing, it does not include electrical contacts or a mating shell. It is intended for use with compatible TE Connectivity DTM series contacts and other housing components to form a complete connector assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.54 | $2.54 |
| 10+ | $2.23 | $2.23 |
| 25+ | $1.92 | $1.92 |
| 100+ | $1.84 | $1.84 |
| 250+ | $1.72 | $1.72 |
| 500+ | $1.64 | $1.64 |
| 1,000+ | $1.56 | $1.56 |
| 2,500+ | $1.49 | $1.49 |
| 5,000+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
Free hanging (in-line) mounting.
IP68 and IP6K9K.
Latch holder.
-55°C to 125°C.
Crimp.
2 rows.
