| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,225 pcs
|
2225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| SVHC Present |

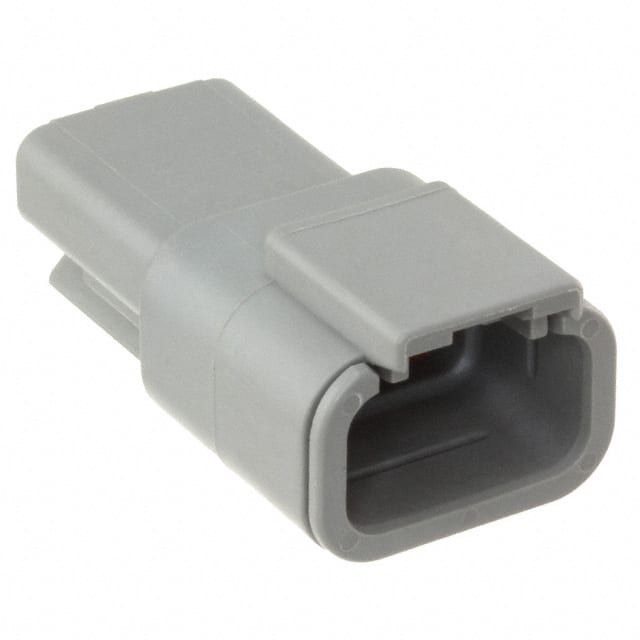

The TE Connectivity DTM04-3P is a rectangular connector housing designed for reliable wire-to-wire connections in demanding environments. This 3-position receptacle housing accepts male pin contacts and uses a secure latch fastening mechanism to ensure mating retention.
Constructed for free hanging (in-line) mounting, the housing is suitable for applications where panel mounting is not available. The crimp termination style allows for field-installable wiring, simplifying assembly and maintenance.
With an ingress protection rating of IP68 and IP6K9K, this housing is protected against dust ingress and temporary immersion in water, as well as high-pressure, high-temperature water jets. It operates over a wide temperature range from -55°C to 125°C, making it suitable for automotive, industrial, and outdoor applications.
The gray housing color is standard for this series. The DTM04-3P is part of TE Connectivity's DTM series of connectors, known for their compact size and robust performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.30 | $2.30 |
| 10+ | $1.90 | $1.90 |
| 25+ | $1.65 | $1.65 |
| 100+ | $1.57 | $1.57 |
| 250+ | $1.47 | $1.47 |
| 500+ | $1.40 | $1.40 |
| 1,000+ | $1.34 | $1.34 |
| 2,500+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DTM04-3P is a receptacle connector housing.
The DTM04-3P has 3 positions.
The DTM04-3P is designed for free hanging (in-line) mounting.
The operating temperature range is -55°C to 125°C.
The DTM04-3P is rated IP68 and IP6K9K.
The DTM04-3P uses crimp termination for contacts.
The housing color is gray.
