| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,297 pcs
|
6297 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector System | |
| Connector Type | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Housing Material | |
| Mating Alignment Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Tape & Reel | |
| UL Flammability Rating |

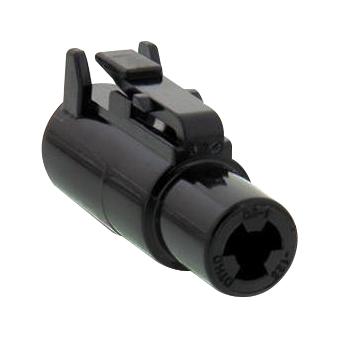

The TE Connectivity DTHD06-1-12S is a 1-position plug housing designed for female socket contacts, part of the DEUTSCH DTHD series of automotive connectors. This housing is sealable and supports wire-to-wire connections, making it suitable for harsh environments. It features a latch lock fastening mechanism and is cable mount (free-hanging) with a 180° cable exit angle. The housing is made of PEI (Polyetherimide) and is black in color. It accommodates size 12 contacts with a mating pin diameter of 2.39 mm and accepts wire insulation diameters from 3.4 to 4.32 mm. The connector is rated for 25 A maximum current and 250 VDC operating voltage. It includes strain relief but does not have terminal position assurance or connector position assurance. The packaging is in boxes of 1500 pieces. This housing is compliant with EU RoHS, ELV, China RoHS, and REACH directives. It is designed for power circuit applications in automotive and industrial settings.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.46 | $3.46 |
| 10+ | $2.72 | $2.72 |
| 25+ | $2.56 | $2.56 |
| 100+ | $2.45 | $2.45 |
| 250+ | $2.26 | $2.26 |
| 500+ | $2.19 | $2.19 |
| 1,000+ | $2.05 | $2.05 |
| 2,500+ | $1.98 | $1.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 position.
Maximum contact current rating is 25 A.
Operating voltage is 250 VDC.
Cable mount (free-hanging).
Yes, it is sealable.
PEI (Polyetherimide).
-55°C to 125°C.
