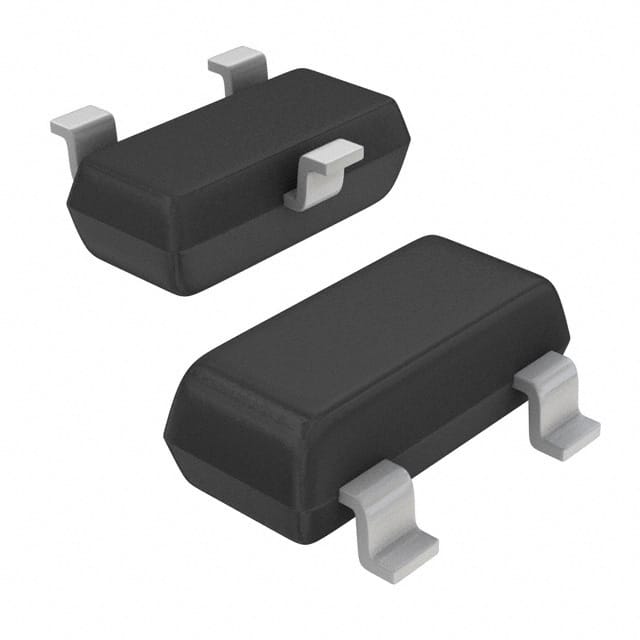

The DTC123EETL is an NPN pre-biased digital transistor (also known as a bias resistor built-in transistor) from ROHM Semiconductor. It integrates two bias resistors (R1 = R2 = 2.2kΩ) into a single SOT-416 (EMT3) package, eliminating the need for external input resistors in inverter and driver circuits. This simplifies circuit design and reduces component count.
Key electrical specifications include a collector-emitter voltage rating of 50V, a maximum collector current of 100mA, and a power dissipation of 150mW. The device offers a DC current gain (hFE) of at least 20 at Ic=20mA and Vce=5V, and a typical transition frequency of 250MHz. The built-in resistors provide a resistance ratio (R2/R1) of 1.0 typical, with a minimum input voltage of 3.0V to turn on and a maximum input voltage of 0.5V to turn off.
The DTC123EETL is designed for surface-mount assembly and is supplied in an EMT3 package (SC-75, SOT-416). It is suitable for a wide range of applications including inverters, interfaces, and drivers. The device is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.34 | $0.34 |
| 10+ | $0.21 | $0.21 |
| 100+ | $0.13 | $0.13 |
| 500+ | $0.10 | $0.10 |
| 1,000+ | $0.09 | $0.09 |
| 3,000+ | $0.08 | $0.08 |
| 6,000+ | $0.08 | $0.08 |
| 9,000+ | $0.05 | $0.05 |
| 24,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vce) is 50V.
The maximum collector current (Ic) is 100mA.
The power dissipation (Pd) is 150mW.
The DTC123EETL is available in an EMT3 surface-mount package, which is also known as SC-75 or SOT-416.
The minimum DC current gain (hFE) is 20, measured at Ic=20mA and Vce=5V.
The typical transition frequency (ft) is 250MHz, measured at Vce=10V, Ie=-5mA, f=100MHz.
The DTC123EETL is marked as RoHS3 compliant, but this status is unverified and should be confirmed with the manufacturer.
