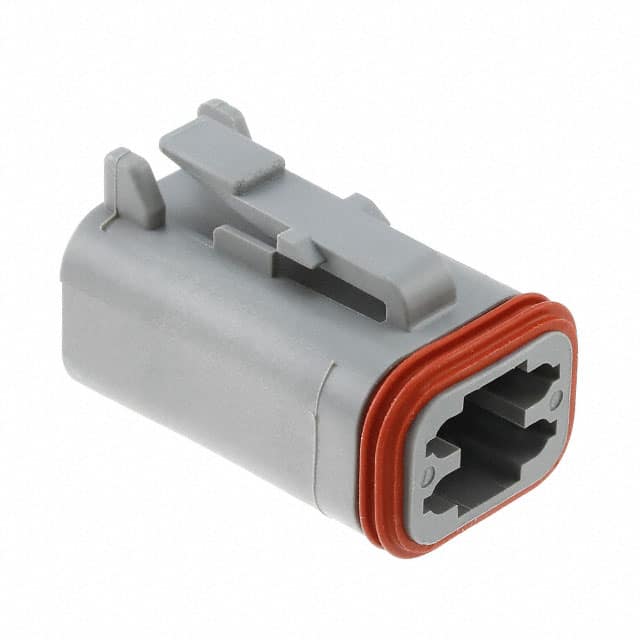

DT06-4S The DT06-4S from TE Connectivity is a rectangular connector housing with 4 positions, female socket contacts, and crimp termination. It features a plug design with latch lock fastening and IP68/IP6K9K ingress protection.
Mfr Part #:

DT06-4S

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
The DT06-4S from TE Connectivity is a rectangular connector housing with 4 positions, female socket contacts, and crimp termination. It features a plug design with latch lock fastening and IP68/IP6K9K ingress protection.
✓ Total Stock: 5,866 pcs
$ Price Range: $1.22 - $2.14

DT06-4S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5,866 pcs
On Request
5866 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DT06-4S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Termination
Contact Type
Fastening Type
Features
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Termination Style
View Similar Products (0)

DT06-4S Description

Short technical summary and product information.

The DT06-4S is a rectangular connector plug housing from TE Connectivity, offering 4 positions arranged in 2 rows. It accepts female socket contacts terminated via crimp, and features a latch lock fastening mechanism for secure mating. The housing is designed for free hanging (in-line) mounting and is rated IP68 and IP6K9K, indicating resistance to dust, water immersion, and high-pressure washdown. This makes it suitable for demanding environments. The operating temperature range is -55°C to 125°C. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). This housing is intended for use with separately ordered contacts and sealing accessories to achieve the specified IP ratings.

DT06-4S Quick Information

Product Type: Rectangular Connector Housing
Series: DT
Canonical Name: TE Connectivity DT06-4S Rectangular Connector Housing, Plug, 4 Position, Female Socket, Crimp, Free Hanging
Subcategory: Connector Housings

DT06-4S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DT06-4S Estimated Pricing

Qty Low High
1+ $2.14 $2.14
10+ $1.82 $1.82
25+ $1.67 $1.67
100+ $1.55 $1.55
250+ $1.45 $1.45
500+ $1.38 $1.38
1,000+ $1.32 $1.32
2,500+ $1.23 $1.23
5,000+ $1.22 $1.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

DT06-4S Features

  • 4-position plug housing with 2 rows of contacts.
  • Crimp termination for female socket contacts.
  • Latch lock fastening for secure connection.
  • IP68 and IP6K9K rated for harsh environments.
  • Free hanging (in-line) mounting style.

DT06-4S Applications

  • Used in applications requiring IP68 dust and water immersion protection.
  • Suitable for environments needing IP6K9K high-pressure washdown resistance.
  • Ideal for free hanging (in-line) connector installations.

DT06-4S FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the DT06-4S connector housing have?

The DT06-4S has 4 positions arranged in 2 rows.

What is the mounting type for the DT06-4S?

It is designed for free hanging (in-line) mounting.

What type of fastening does the DT06-4S use?

It uses a latch lock mechanism.

How are contacts terminated in the DT06-4S?

Contacts are terminated via crimp.

What IP rating does the DT06-4S have?

It is rated IP68 and IP6K9K.

What is the operating temperature range of the DT06-4S?

-55°C to 125°C.
