DTM06-12SB
TE Connectivity

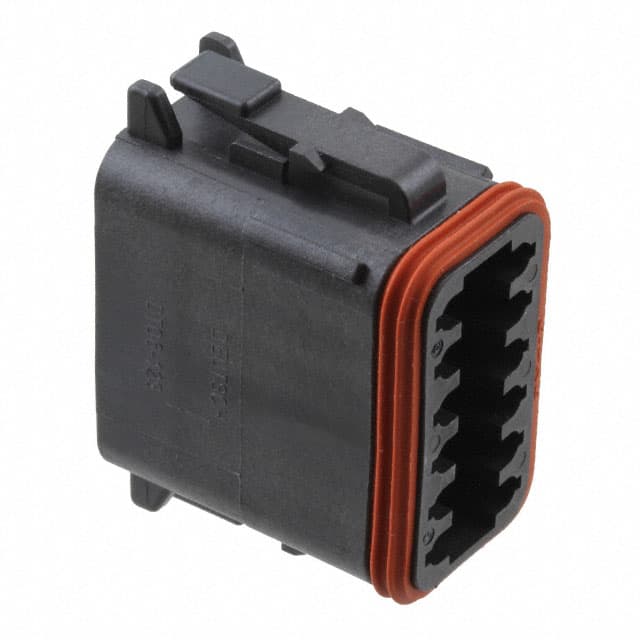

TE Connectivity DTM06-12SB 12-position rectangular plug housing with female socket contacts. Crimp termination, free hanging mounting, latch lock fastening.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,534 pcs
|
5534 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Tape & Reel |
The TE Connectivity DT06-12SB is a rectangular connector housing designed for use in demanding applications. It is a plug housing with 12 positions arranged in 2 rows, accepting female socket contacts terminated by crimp. The housing features a latch lock fastening mechanism for secure mating and is designed for free hanging (in-line) mounting.
This connector housing is rated with an ingress protection of IP68 and IP6K9K, making it suitable for environments where exposure to dust and water is a concern. The operating temperature range is -55°C to 125°C, allowing use in a wide variety of industrial and automotive applications.
The DT06-12SB is part of TE Connectivity's DT series of connectors, known for their reliability and ruggedness. The black housing material provides durability and resistance to environmental factors. This product is ideal for applications requiring a robust, sealed connector solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.34 | $6.34 |
| 10+ | $4.31 | $4.31 |
| 25+ | $4.04 | $4.04 |
| 50+ | $3.85 | $3.85 |
| 100+ | $3.66 | $3.66 |
| 250+ | $3.44 | $3.44 |
| 500+ | $3.28 | $3.28 |
| 1,000+ | $3.25 | $3.25 |
| 2,500+ | $3.24 | $3.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DT06-12SB has 12 positions.
It accepts female socket contacts.
It is designed for free hanging (in-line) mounting.
It is rated IP68 and IP6K9K.
The operating temperature range is -55°C to 125°C.
It uses crimp termination for the contacts.
It uses a latch lock fastening mechanism.
