| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

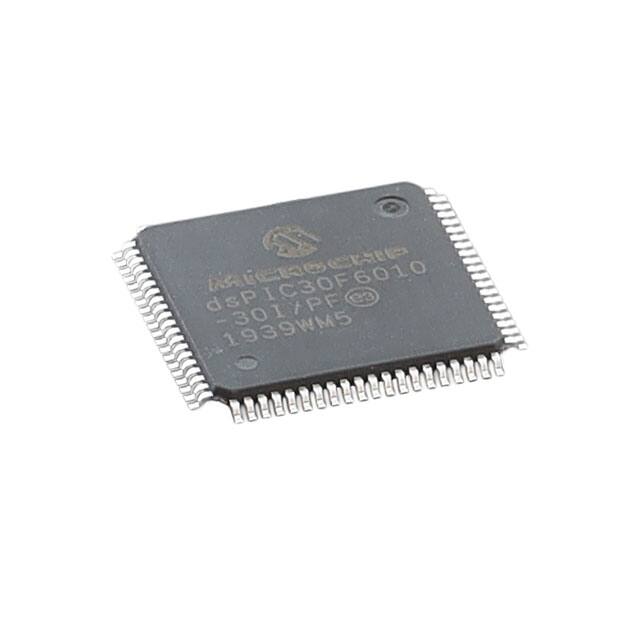

The Microchip Technology DSPIC30F6010-30I/PF is a high-performance 16-bit Digital Signal Controller (DSC) from the dsPIC™ 30F family. This device integrates a powerful dsPIC core with extensive peripherals, making it suitable for a wide range of embedded control applications.
Key electrical specifications include 144KB of FLASH program memory and 8KB of RAM, supporting efficient code execution and data handling. It operates within a voltage range of 2.5V to 5.5V and offers a speed of 30 MIPS. Connectivity options include CANbus, I²C, SPI, and UART/USART, facilitating communication with other system components. The device is equipped with 16x10-bit Analog-to-Digital converters and various peripherals such as Brown-out Detect/Reset, LVD, Motor Control PWM, QEI, POR, PWM, and WDT.
Packaged in an 80-TQFP (14x14mm) format, this microcontroller is designed for surface mounting. It operates across a wide temperature range of -40°C to 85°C (TA), ensuring reliability in diverse environmental conditions. The dsPIC30F6010-30I/PF is a versatile component for applications requiring advanced digital signal processing and control capabilities.
The program memory size is 144KB (48K x 24).
The RAM size is 8K x 8.
The operating voltage is 2.5V to 5.5V.
The operating temperature is -40°C to 85°C (TA).
It is supplied in an 80-TQFP package.
Connectivity options include CANbus, I²C, SPI, and UART/USART.
