| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

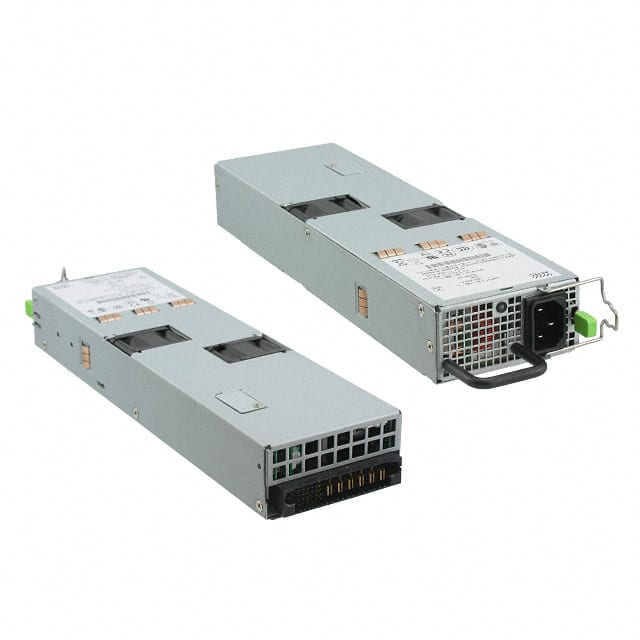

The DS850-3 is a front-end AC/DC converter from Artesyn Embedded Power, delivering 850W at 12VDC output. It accepts a universal input voltage range of 90-264VAC and provides a single regulated output of 12V at up to 70A.
This converter features hot swappable capability, I²C interface for monitoring, load sharing, power factor correction (PFC), remote sense, and a standby output. It is designed for ITE (commercial) applications.
The unit operates over a temperature range of -10°C to 50°C and achieves efficiency of 82% typical. It measures 279.4mm x 81.3mm x 39.9mm (11.00" x 3.20" x 1.57") and is suitable for rack-mount or embedded systems.
90-264VAC.
12VDC at 70A.
850W.
-10°C to 50°C.
Hot swappable, I²C interface, load sharing, PFC, remote sense, standby output, universal input.
82% typical.
Front end, dimensions 279.4mm x 81.3mm x 39.9mm.
