| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Form Factor | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

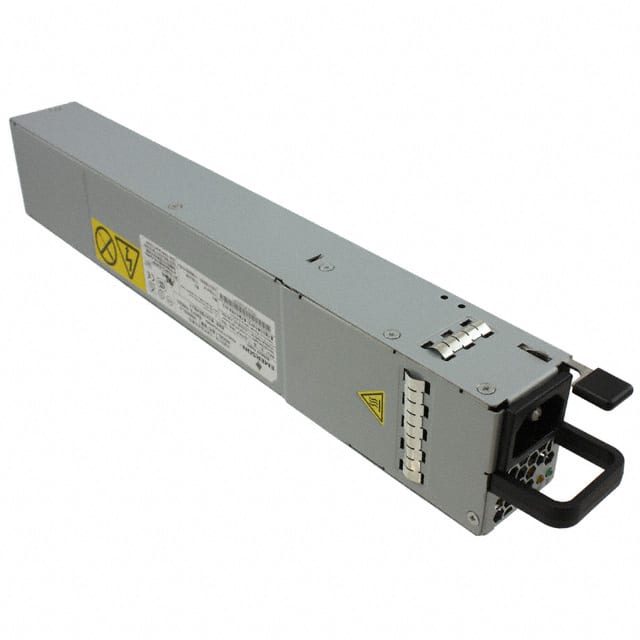

The Artesyn DS800SL-3-001 is an 800-watt bulk front end AC-DC power supply designed for enterprise servers and space-constrained applications. It accepts a universal input of 90 to 264 VAC and delivers a main 12V output at 66.7A, plus a 5V standby output at 4A. The unit achieves 92% efficiency at 50% load (200 VAC), meeting 80 Plus Gold requirements.
Housed in a slimline 1U x 54.5 mm rack-mount package (322.0 mm x 54.5 mm x 40.0 mm), the DS800SL-3-001 supports hot-swap and N+1 redundant operation. It includes active power factor correction (0.99 typical), I2C interface for monitoring, remote sense, and load sharing. The operating temperature range is -10°C to 50°C.
This power supply is intended for ITE (commercial) applications and carries CB safety approval. It features variable speed smart fans and EMI Class B compliance. The unit is available in two airflow directions.
The main output is 12V at 66.7A. A 5V standby output is also provided at 4A.
The efficiency is 92% at 50% load (200 VAC), meeting 80 Plus Gold requirements.
The operating temperature range is -10°C to 50°C.
It uses a 1U x 54.5 mm slimline rack-mount package with dimensions 322.0 mm x 54.5 mm x 40.0 mm.
Yes, it supports hot-swap and N+1 redundant operation.
It accepts a universal input of 90 to 264 VAC at 47 to 63 Hz.
It carries CB safety approval for ITE (commercial) applications.
