| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

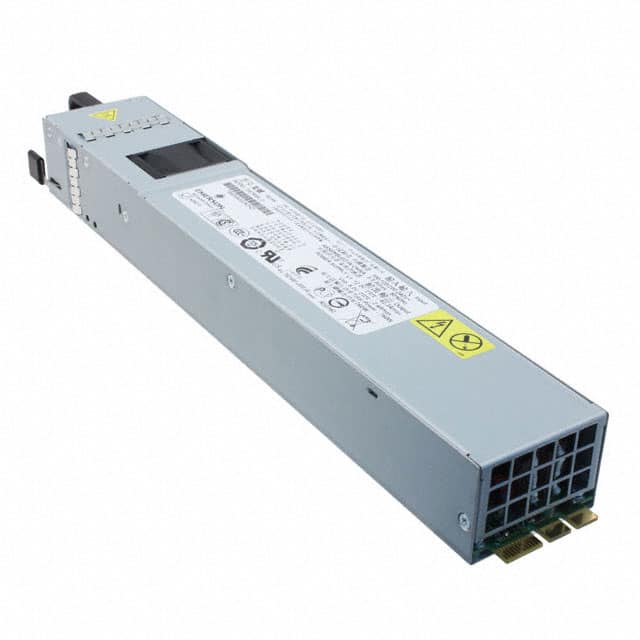

The Artesyn Embedded Power DS760SL-3 is a 760 Watt bulk front-end AC-DC power supply designed for enterprise servers and space-constrained applications. It accepts a wide input voltage range of 90 to 264 VAC and provides a main 12V output at 62.3A and a 5V standby output at 2.4A.
This power supply boasts a high peak efficiency of 91% at 230 VAC and 50% load. It is housed in a slimline 1U high, 2.15-inch wide rack-mounting package, measuring 12.68 inches in length. Key features include N+1 redundancy, hot-swap capability, internal OR'ing, and variable speed smart fans for effective cooling.
The DS760SL-3 meets EMI Class A standards and EN61000 immunity. It is designed for 'always-on' applications requiring reliable power delivery. The unit supports remote sense for voltage compensation and forced load sharing up to 10%.
The main output voltage is 12V at a maximum current of 62.3A.
The standby output voltage is 5V at a maximum current of 2.4A.
The operating input voltage range is 90 to 264 VAC.
The efficiency is 91% typical at 230 VAC and 50% load.
The dimensions are 322.0mm (Length) x 54.5mm (Width) x 40.0mm (Height).
The operating temperature range is -10°C to 50°C.
Yes, the DS760SL-3 supports hot-swap functionality.
