| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

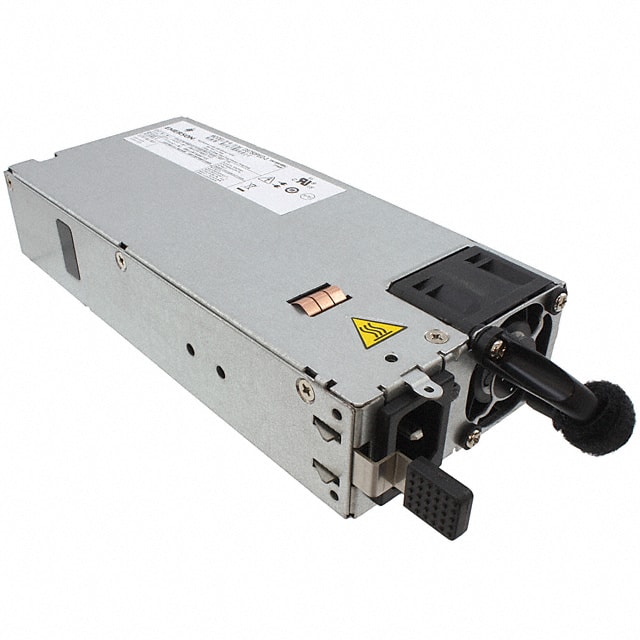

The Artesyn Embedded Power DS750PED-3-001 is a 750W front-end bulk power supply designed for ITE (Commercial) applications. It accepts a wide input voltage range from 90 to 264 VAC and operates at a frequency of 47 to 63 Hz.
This power supply boasts a peak conversion efficiency of 94.0% and features active power factor correction, ensuring efficient power utilization. It provides a main 12V DC output capable of delivering up to 62.5A continuously, along with a 12V standby output. The unit is housed in a 1U high rack-mount enclosure with a short form factor, offering a high power density of 16.4 W/in³.
Key features include hot-swappable capability, load sharing, PMBus compliance, and active current sharing. Protections such as overcurrent, overvoltage, undervoltage, overtemperature, and fan fault are integrated for reliability. The DS750PED-3-001 meets Class A EMI limits with a 6 dB margin and complies with EN61000-3-2 harmonic standards.
Safety approvals include CB, CE, UL/cUL, Demko, UKCA, CCC, and BSMI. The operating temperature range is from 10°C to 50°C. This power supply is suitable for various industrial and commercial applications requiring robust and efficient power conversion.
The DS750PED-3-001 provides a total continuous output power of 750 W.
The input voltage range is 90 to 264 VAC.
The peak conversion efficiency is 94.0%.
The main DC output is 12V, and the standby DC output is also 12V.
The main DC output can deliver a maximum current of 62.5 A.
The operating temperature range is 10°C to 50°C.
This power supply uses Rack Mount mounting.
