| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

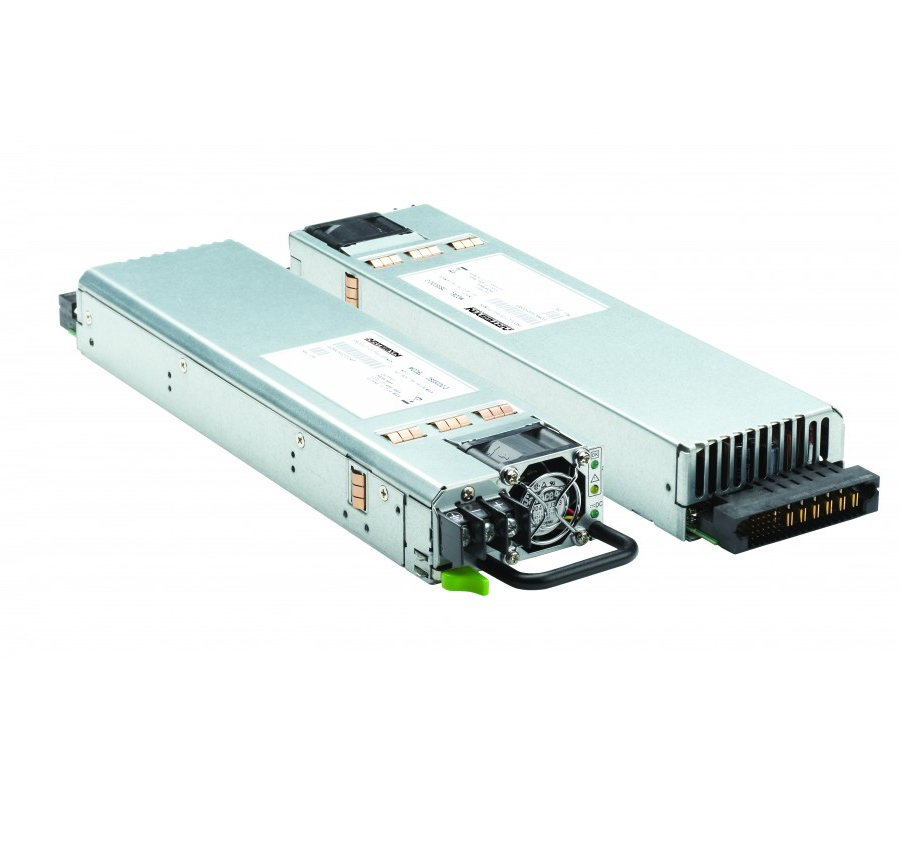

The Artesyn Embedded Power DS450DC-3-002 is a front-end DC DC converter designed for applications requiring a 36 to 75 VDC input. It delivers a main output of +12 VDC and a +3.3 VDC standby output, with a total power capacity of 450 Watts. This converter features a 1U x 2U form factor suitable for rack mounting.
Key electrical specifications include an efficiency of 84% at 75 VDC input, active current sharing, and internal ORing FETs. The operating temperature range is -10°C to 50°C. It supports hot-plug operation and N+1 redundancy. The unit includes built-in cooling fans and an I2C communication interface for FRU data.
Compliance includes UL/cUL62368, EN62368, CE mark, China CCC, and UKCA Mark. The DS450DC-3-002 is designed for ITE (Commercial) applications and offers robust performance with features like overvoltage and undervoltage protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36-75 VDC
12V and 3.3V
84%
21 A
FCC Subpart J EN55032 Class A
305.6mm length, 78mm width, 40mm height
UL/cUL62368, NEMKO+ CB report EN62368, CE mark, China CCC, UKCA Mark
