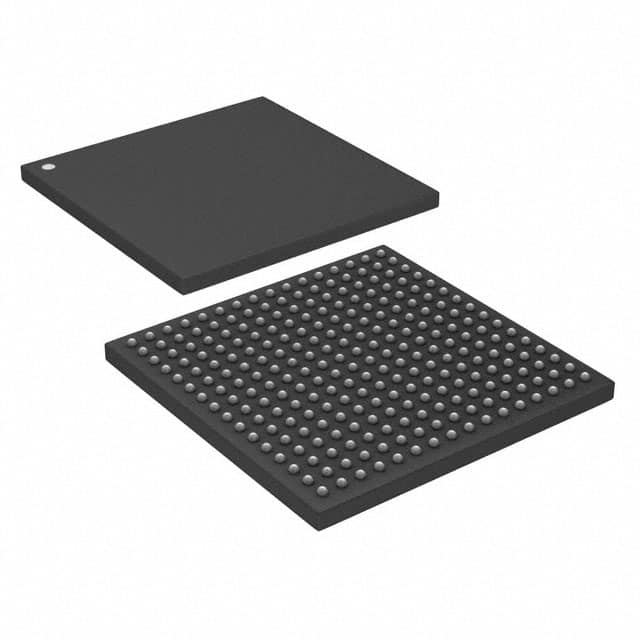

DS33X41 The Analog Devices DS33X41 is a specialized interface IC designed for extending Ethernet LAN segments. It supports multiple encapsulation methods and link aggregation.
Mfr Part #:

DS33X41

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices DS33X41 is a specialized interface IC designed for extending Ethernet LAN segments. It supports multiple encapsulation methods and link aggregation.
✓ Total Stock: 2,578 pcs

DS33X41 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,568 pcs
On Request
2568 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS33X41 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Interface
Lead Spacing
Mounting Type
Supplier Device Package
Voltage
View Similar Products (0)

DS33X41 Description

Short technical summary and product information.

The Analog Devices DS33X41 is an Ethernet Over PDH Mapping Device designed to extend 10/100/1000Mbps Ethernet LAN segments. It encapsulates MAC frames in GFP-F, HDLC, cHDLC, or X.86 (LAPS) for transmission over PDH/TDM data streams, supporting Ethernet Access Services like eLAN, eLINE, and VLAN.



Key features include a 10/100/1000 IEEE 802.3 MAC with autonegotiation and flow control, VCAT/LCAS link aggregation for up to 16 links, and support for up to 200ms differential delay. The device offers Quality of Service (QoS) support, VLAN, Q-in-Q, 802.1p, and DSCP capabilities, along with Ethernet bridging and filtering. It operates with 1.8V, 2.5V, and 3.3V supplies.



This IC is suitable for applications such as Bonded Transparent LAN Service, LAN Extension, and Ethernet Delivery Over various TDM interfaces. The DS33X41 is available in a 256-CSBGA (17x17) package and is designed for surface mounting.



It provides flexibility through programmability in classification, priority queuing, encapsulation, and bundling, enabling various Ethernet services. OAM frames can be extracted and inserted by an external processor for Ethernet service management.

DS33X41 Quick Information

Product Type: Interface IC
Canonical Name: DS33X41 Ethernet Over PDH Mapping Device
Subcategory: Specialized

DS33X41 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS33X41 Features

  • 10/100/1000 Ethernet MAC interface.
  • Supports GFP-F/LAPS/HDLC/cHDLC encapsulation.
  • VCAT/LCAS link aggregation for 16 links.
  • Supports up to 200ms differential delay.
  • Operates at 1.8V, 2.5V, and 3.3V.

DS33X41 Applications

  • Extends Ethernet LAN segments.
  • Supports Ethernet Access Services.
  • Used for data transport applications.
  • Enables Transparent LAN Service.

DS33X41 FAQs

6 frequently asked questions generated from this part’s specifications.
What are the supported Ethernet MAC interfaces on the DS33X41?

The DS33X41 supports 10/100/1000 IEEE 802.3 MAC interfaces, including MII, RMII, and GMII.

What encapsulation methods does the DS33X41 support?

The DS33X41 supports GFP-F, LAPS, HDLC, and cHDLC encapsulation.

What is the maximum differential delay supported by the DS33X41?

The DS33X41 supports up to 200ms of differential delay.

What voltage levels does the DS33X41 operate at?

The DS33X41 operates at 1.8V, 2.5V, and 3.3V.

What is the package type for the DS33X41?

The DS33X41 is supplied in a 256-CSBGA (17x17) package, also referred to as 256-LBGA, CSBGA.

How is the DS33X41 mounted?

The DS33X41 is designed for surface mounting.
