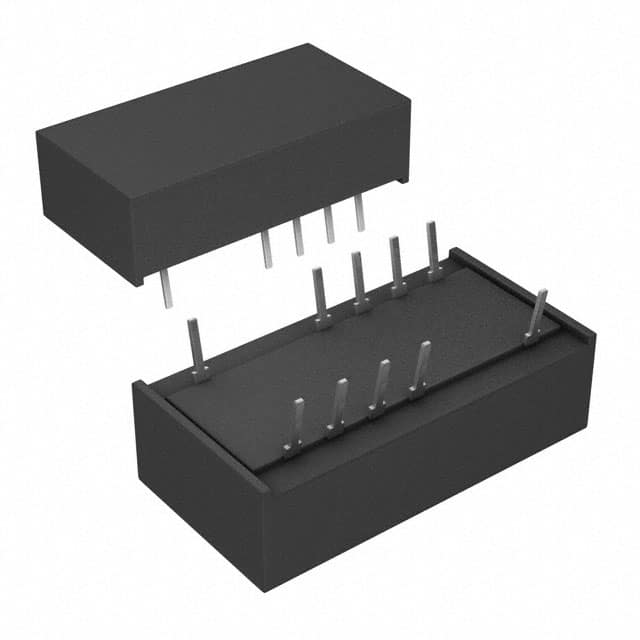

DS32KHZ/DIP TCXO oscillator with 32.768 kHz frequency, CMOS output, and 5V supply. Features ±7.5ppm frequency stability and through-hole 14-DIP package.
Mfr Part #:

DS32KHZ/DIP

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
TCXO oscillator with 32.768 kHz frequency, CMOS output, and 5V supply. Features ±7.5ppm frequency stability and through-hole 14-DIP package.
✓ Total Stock: 1,117 pcs
$ Price Range: $12.06 - $17.62

DS32KHZ/DIP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,117 pcs
On Request
1117 pcs On Request 1 On Request On Request 0701+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DS32KHZ/DIP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Base Resonator
Current
Frequency
Frequency Stability
Height
Length
Mounting Type
Operating Temperature
Output
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

DS32KHZ/DIP Description

Short technical summary and product information.

The DS32KHZ/DIP is a temperature-compensated crystal oscillator (TCXO) from Analog Devices / Maxim Integrated. It provides a precise 32.768 kHz output with CMOS logic levels, operating from a 5V supply with a typical current consumption of 220µA. The frequency stability is ±7.5ppm over the operating temperature range of 0°C to 70°C. This oscillator is housed in a 14-pin DIP module (21.84mm x 11.68mm x 8.01mm) with through-hole mounting, suitable for breadboard prototyping and industrial applications requiring accurate timekeeping.

DS32KHZ/DIP Quick Information

Product Type: TCXO Oscillator
Canonical Name: TCXO Oscillator 32.768 kHz CMOS 5V 14-DIP Module
Subcategory: TCXO

DS32KHZ/DIP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DS32KHZ/DIP Estimated Pricing

Qty Low High
1+ $17.62 $17.62
10+ $14.60 $14.60
22+ $13.73 $13.73
44+ $13.27 $13.27
110+ $13.23 $13.23
264+ $12.55 $12.55
506+ $12.06 $12.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

DS32KHZ/DIP Features

  • Temperature-compensated crystal oscillator (TCXO).
  • 32.768 kHz output frequency with CMOS logic.
  • ±7.5ppm frequency stability over 0-70°C.
  • Low 220µA supply current at 5V.
  • Through-hole 14-DIP package for easy mounting.

DS32KHZ/DIP Applications

  • Real-time clock reference for embedded systems.
  • Precision timing in industrial controllers.
  • Low-power timekeeping in battery-operated devices.
  • Frequency reference for microcontroller systems.

DS32KHZ/DIP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output frequency of the DS32KHZ/DIP?

The output frequency is 32.768 kHz.

What is the supply voltage requirement?

The supply voltage is 5V.

What is the frequency stability?

The frequency stability is ±7.5ppm.

What is the operating temperature range?

The operating temperature range is 0°C to 70°C.

What package type does the DS32KHZ/DIP use?

It uses a 14-DIP Module (through-hole).

Is the DS32KHZ/DIP RoHS compliant?

It is marked as RoHS3 Compliant, but this is unverified.

What is the supply current?

The supply current is 220µA.
