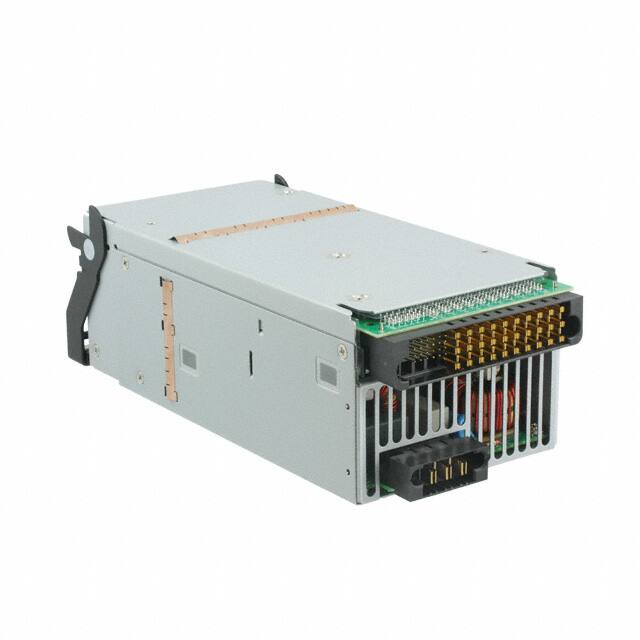

The Artesyn Embedded Power DS2900-3 is a 2900-watt AC/DC front end power supply designed for distributed power architectures. It delivers a main +12V output at 240A and includes a +3.3V standby output at 3A. This unit operates from a wide input voltage range of 180 to 264 VAC and achieves up to 91% efficiency.
The DS2900-3 features active power factor correction (PFC) with a typical power factor of 0.99 and meets EN61000-3-2 harmonic compliance. It incorporates an I2C communication interface with PMBus compliance for digital monitoring and control. The front end is hot-swappable and supports N+1 redundancy and active current sharing from 10% to 100% load.
The supply is housed in a 2U X 3U rack mount form factor with dimensions of 217.0mm x 106.0mm x 78.0mm. It includes a built-in 40mm x 40mm cooling fan and is designed for hot plug operation. Protection features include over voltage, under voltage, and constant current limiting.
The DS2900-3 provides a total output power of 2900 watts with a main +12V output at 240A.
The input voltage range is 180 to 264 VAC.
Yes, it includes an I2C communication interface and is PMBus compliant.
The operating temperature range is 0°C to 70°C.
It is a rack mount supply with a 2U X 3U form factor and dimensions of 217.0mm x 106.0mm x 78.0mm.
The typical efficiency is 91% at nominal line voltage and 50% load.
Protection includes over voltage (14.4-15.6V main, 3.63-4.29V standby), under voltage (9-10V main latch off), and constant current limiting.
